Staircase types
Every residential staircase type — mechanism, history, sizes, structural construction, code, cost, and the design situations each is appropriate for. The definitive reference.
A staircase is the most floor-demanding feature in any multi-story building — typically 35–60 square feet of horizontal floor area dedicated to vertical circulation. It's also the most safety-critical: stair-related falls are among the leading causes of household injury, especially among children and elderly people. The geometry of a staircase — its riser height, tread depth, total run length, and shape — is regulated by building codes in nearly every jurisdiction for these reasons.
Beyond safety, staircases are major architectural features. The form of a staircase — straight, L-shape, U-shape, curved, spiral — affects how the building reads from outside (where the staircase intersects exterior walls), how the interior space flows, what rooms can be located where, and how grand or utility the home feels. Period architecture from Federal-era Adam to modern Eichler ranches has had distinctive staircase vocabulary.
This page is the complete reference for residential staircase types. For the standards on riser height and tread depth, see riser and tread standards. For stair width and landing requirements, see stair width and landing. For the three-shape comparison, see staircase shapes straight L U. For the in-app how-to, see add staircase.
In this guide
- 1
Anatomy of a staircase
Every staircase shares the same anatomy regardless of shape. Eleven terms describe a real staircase: Total rise. The total vertical distance the staircase climbs, floor surface to floor surface. In typical American residential construction, this is 96–108 inches (8–9 feet floor-to-floor for an 8' or 9' ceiling), or 108–120 (9–10 feet floor-to-floor for taller ceilings). Riser. The vertical face of a single step. Standard residential riser height: 7–7.75 inches. Tread. The horizontal surface of a single step — where the foot lands. Standard residential tread depth: 10–11 inches. Nosing. The projection of the tread beyond the riser face — typically 0.75 to 1.25 inches. Required by most codes to provide a clear visual edge. Total run. The total horizontal distance the staircase covers. For a straight staircase: number of treads × tread depth. Width. The clear width of the stair, measured between handrails (or between wall and open side, if open on one side). Handrail. The horizontal rail at handrail height (typically 34–38 inches above the leading edge of each tread). Required by code on one or both sides depending on the situation. Stringer. The structural member that supports the treads and risers. Either a 'cut stringer' (treads notched into a wider board) or a 'mitered stringer' (treads supported by brackets attached to a continuous stringer). Newel post. A larger vertical post at the bottom and top of the staircase, anchoring the handrail. Often decorative as well as structural. Landing. A horizontal platform between two flights of stairs, used to change direction (L-shape, U-shape) or to provide a rest in long runs. Headroom. The minimum vertical clearance above each tread, measured from the leading edge of the tread to anything overhead (ceiling, beam, soffit). US code requires 6'8" (80 inches) minimum.
- 2
Straight staircase

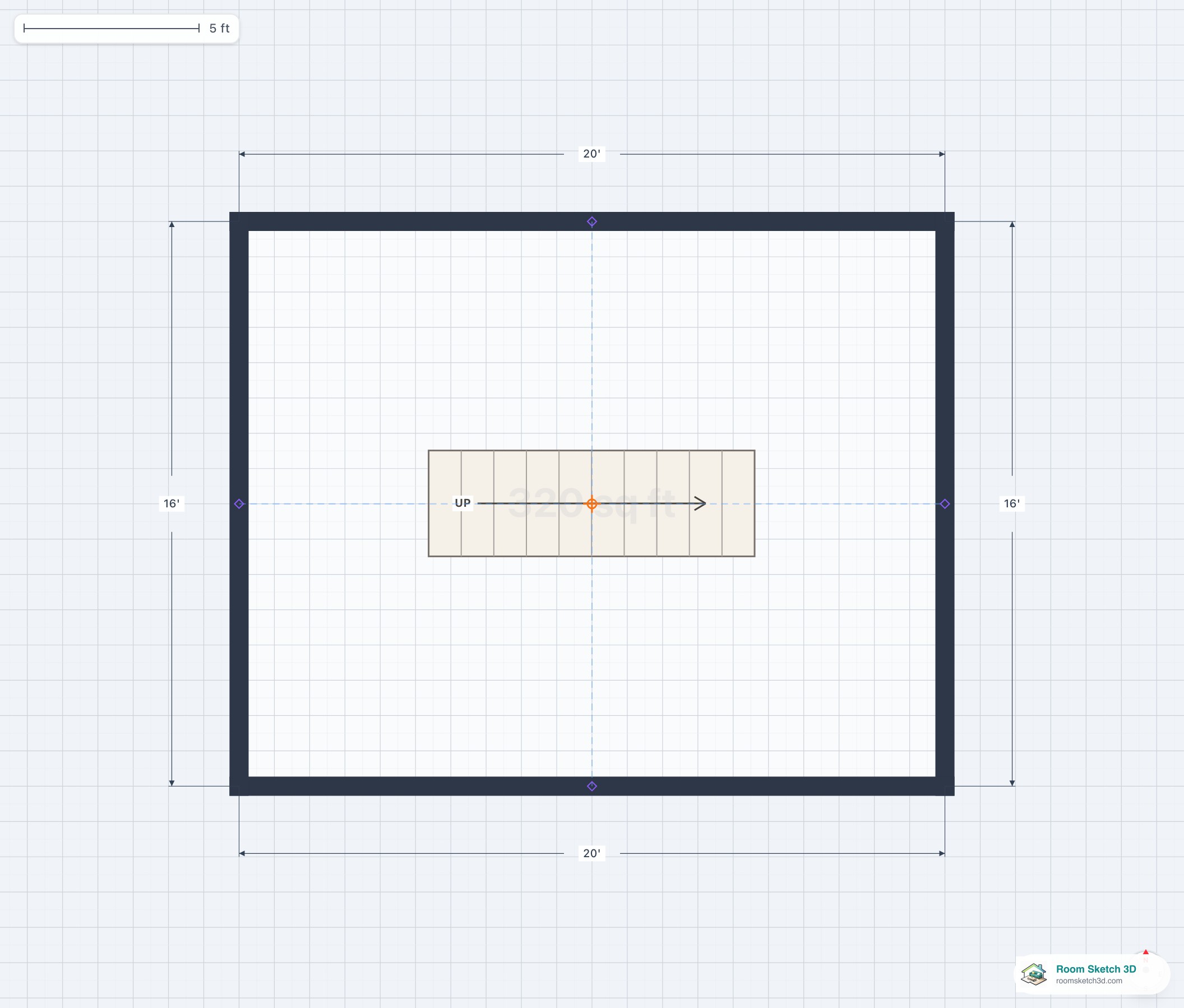

Mechanism. A single continuous flight of stairs from one floor to the next, with no turns or landings. Each tread sits directly above the next; the staircase runs in a straight line. Standard dimensions (residential). - Number of steps: 12–15 typical for an 8-foot story (8 feet ÷ 7.5" riser = 12.8 → 13 risers; 12 treads). - Total run: 12–14 feet (12 × 10.5" treads + nosing). - Width: 36–48 inches. - Footprint: 36 × 14 feet typical = 50 sq ft. Pros. - Easiest to climb — momentum carries. - Safest to descend — single direction, no turns. - Simplest construction. - Cheapest of the residential shapes. Cons. - Eats the most linear floor — needs 12–14 feet of continuous space along one wall. - Reads less formal than turning staircases. - Doesn't fit in narrower house layouts. When to use. Houses with enough linear space along a wall — typically 14+ feet of wall length available. Renovation projects where the existing footprint is a long rectangle. Most starter homes and standard suburban residential layouts.
- 3
L-shape staircase

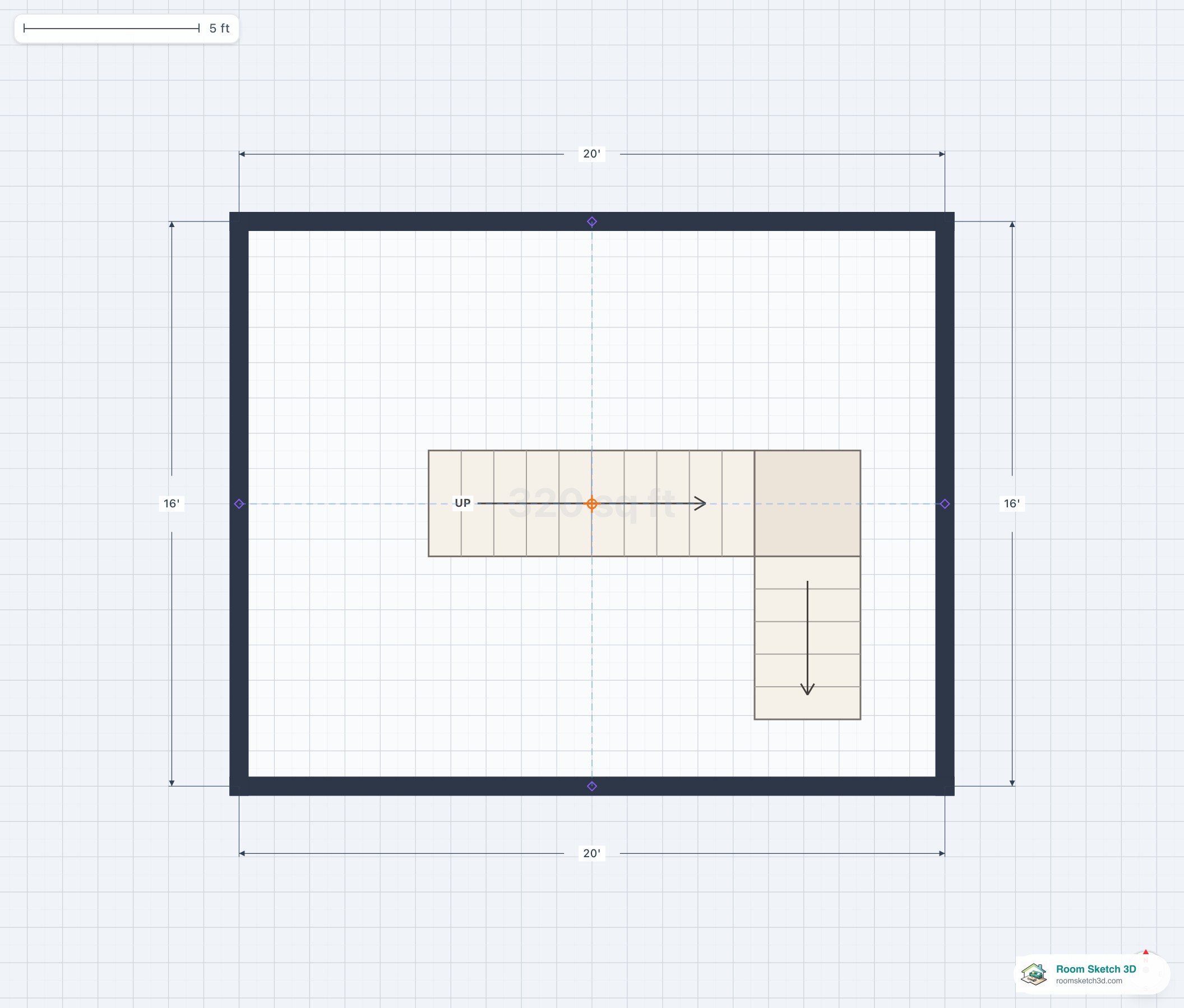

Mechanism. Two flights of stairs joined by a landing where they meet at a 90° turn. As you climb, you encounter the landing partway up; on the landing, you turn 90° (left or right) and continue up the second flight. Direction: As you climb, the turn either goes to your left or to your right. The two orientations: - Left-handed L (LH-L): Turn to the left at the landing. - Right-handed L (RH-L): Turn to the right at the landing. Standard dimensions (residential). - Number of steps: same as a straight (12–15 for 8-foot floor-to-floor). - Landing: at least equal to the stair width — typically 36×36 inches. - Total footprint: roughly 8×8 to 10×10 feet depending on landing size and run distribution. - Width: 36–48 inches. Pros. - Fits into corner spaces. - More compact in linear footprint than straight (the L-shape splits the run across two walls). - Landing provides a natural rest partway up. - More architecturally interesting than straight. Cons. - Slightly more construction complexity (landing framing). - Landing requires real area (36×36 minimum). When to use. Houses where the staircase fits into a corner — common in larger homes with a stair foyer at one corner of the floor plan. Renovation projects where the staircase needs to fit in a 10×10 area. Multi-story townhouses with stacking floors.
- 4
U-shape (switchback) staircase

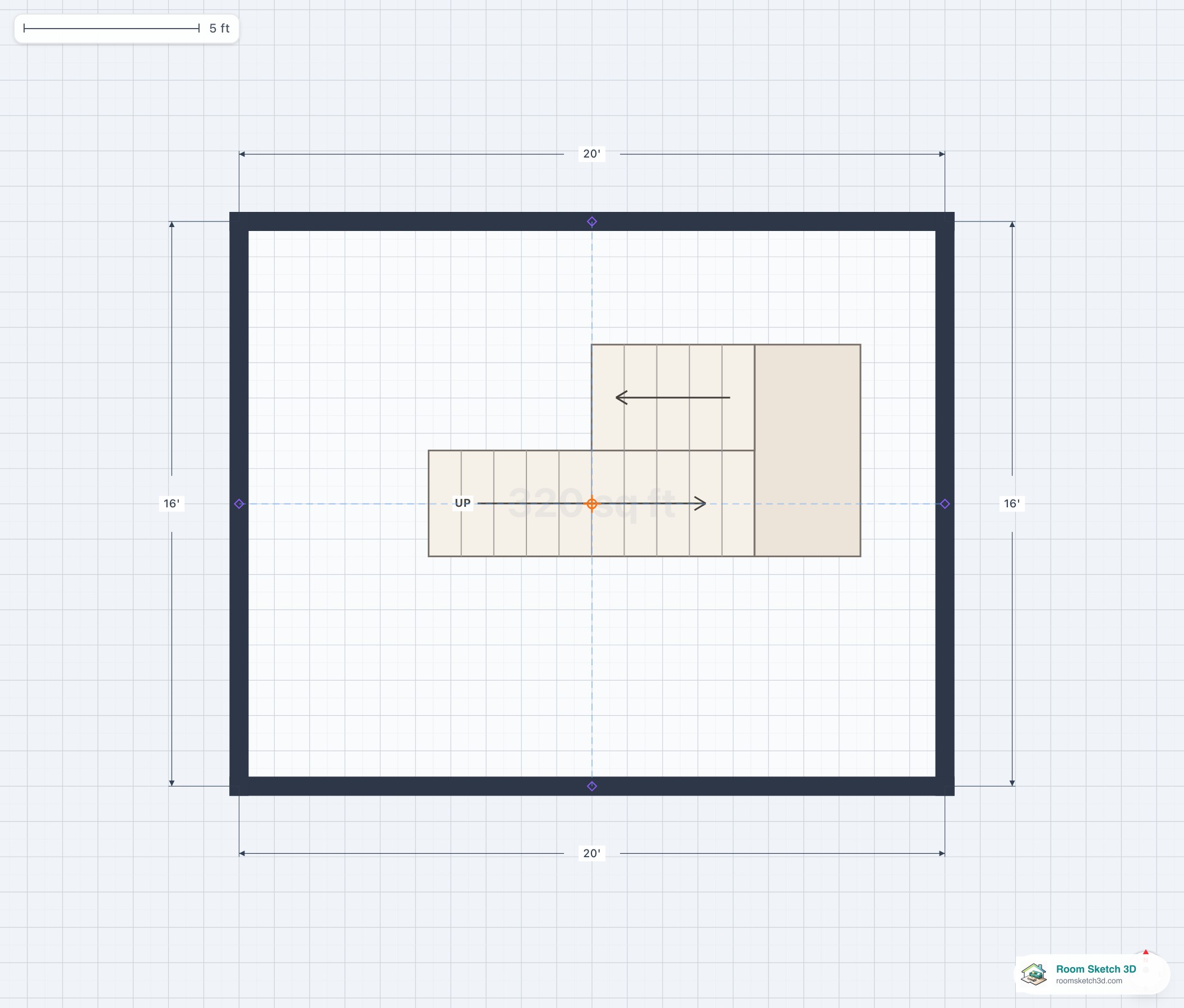

Mechanism. Two flights of stairs running parallel to each other (in opposite directions), with a landing between them. As you climb the first flight, you reach the landing; on the landing, you turn 180° and climb the second flight in the opposite direction. The two flights are stacked next to each other instead of running end-to-end. Sometimes called: Switchback, hairpin, half-turn, U-stair. Standard dimensions (residential). - Number of steps: same as straight (12–15 for 8-foot floor). - Landing: at least equal to twice the stair width minus the wall thickness — typically 36×72 (or 36×80) inches. - Total footprint: roughly 7×12 feet (more compact than L in linear distance; more depth required). - Width per flight: 36–48 inches. Pros. - Most compact total floor area of the three residential shapes — fits a full story rise in a small footprint. - Common in narrow townhouses, stair towers, and multi-floor flats. - Landing provides a substantial rest at the midpoint. Cons. - Requires more landing area than L-shape. - More construction complexity. - Two direction changes can feel disorienting at first. When to use. Narrow houses (townhouses, row houses). Multi-floor flats with stacking stairs (each U-stair sits directly above the U-stair below). Stair towers in larger houses where the stair is in a discrete shaft. Where total floor footprint is the priority and linear distance is unavailable.
- 5
Winder staircase
Mechanism. Triangular treads at the turn of a staircase — replacing the rectangular landing with pie-slice-shaped treads that gain elevation through the turn. The staircase turns continuously through 90° (for a 90° winder) or 180° (for a 180° winder) using these triangular treads. Variants: - 2-winder (90° turn with 2 winders). The turn uses 2 triangular treads; the rest is straight. - 3-winder (90° turn with 3 winders). Smoother turn; more space for the triangular treads. - 180° winder. Continuous turn through 180° using winders. Pros. - More compact than a true L or U-shape (no landing area). - Continuous climb without a landing rest. - Common in tight townhouse and old-house layouts. Cons. - Winder treads are narrower at the inside of the turn (sometimes only 6 inches deep at the inner edge) and wider at the outside. - More dangerous than rectangular treads — the foot-landing area is inconsistent. - Some jurisdictions restrict winder use in residential code; check local requirements. - Looks less formal than L or U-shape staircases. When to use. Older houses with tight constraints where retrofitting an L or U-shape doesn't fit. New construction trying to fit a staircase in a smaller footprint than L/U requires. Generally avoid in new construction unless space is critically tight.
- 6
Spiral staircase
Mechanism. All treads radiate from a single central column, like the steps of a spiral. The staircase wraps around the column. Standard dimensions. - Diameter: 36–84 inches typical residential. Wider is more comfortable but takes more floor area. - Tread: pie-slice shape, narrower at the inside (where it meets the column) and wider at the outside. - Rise per step: 7–8 inches (same as standard). - Number of steps: varies by diameter and floor-to-floor height. - Headroom: same 80-inch minimum as other staircase types. Construction. Modern spiral staircases use a single steel column with treads cantilevered out, or a wrought-iron framework with treads bolted between two stringers. Materials: steel, wood, aluminum, glass. Pros. - Smallest floor footprint of any residential staircase type (often 36–60 sq ft). - Visually striking; sometimes a design feature. - Inexpensive prefabricated kits available ($1,000–8,000 for kit; significantly more for custom). Cons. - Difficult to use (narrow inner tread; requires hand on inner column for stability). - Very difficult or impossible for elderly and mobility-limited users. - Can't accommodate furniture moves (couches and large items don't fit). - US code limits spiral staircase use as the primary access between floors in some jurisdictions — typically allowed only for lofts, attics, or secondary access. - Not a 'real' staircase in most codes; doesn't count as a code-compliant means of egress. When to use. Loft or attic access (secondary). Designer features in modern architecture. Tight spaces where no other staircase will fit. Stair towers in industrial-loft conversions. When NOT to use. As primary access between floors. In homes with children or elderly users. Where furniture must be moved between floors.
- 7
Helical and curved staircases
Helical staircase. Similar to a spiral but with a larger diameter — typically 6+ feet diameter — and with a structural railing instead of a central column. The stair curves through 90°, 180°, or more without sharp turns. Curved staircase. A staircase that curves continuously without a clear shape (not L, not U, not spiral). The curve can be gentle (a slight S-shape) or dramatic (a half-circle). Pros. - Architecturally dramatic; signature feature. - Used in grand foyers, hotels, and luxury houses. - More gradual transition than U-shape switchback (no abrupt 180° turn). Cons. - Very expensive — typically 5–20× the cost of an equivalent L-shape staircase. - Requires specialized engineering and fabrication. - Large floor footprint (12–20+ feet wide). When to use. Grand foyers in luxury houses. Public spaces (hotels, museums, civic). Statement architecture where the staircase is meant to be the room's focal point.
- 8
Monumental staircase
Definition. A staircase designed as an architectural focal point, often very wide (60+ inches) and located in a grand entrance hall, foyer, or public space. The staircase itself is part of the room's design rather than a utility feature. Characteristics. - Width 5+ feet (60–96+ inches). - Wide low risers (often 6 inches instead of 7.5) for a more leisurely climb. - Wide deep treads (12–14 inches instead of 10–11). - Decorative balusters, newels, handrails. - Often centered in the room or aligned with a major axial view. - Marble or stone in some grand applications; wood with elaborate detailing in most. When to use. Large foyers in luxury houses. Hotels and public buildings. Mansions and historic estates. Not appropriate for. Typical residential — the monumental staircase eats more floor area than most houses have available, and the proportions look wrong in standard ceiling heights.
- 9
Alternating tread (ship's ladder) staircase
Mechanism. Half-width treads alternating left and right; only one foot lands on each tread. The user climbs by alternating feet on the alternating-side treads. Pros. - Very small footprint — about half the linear distance of a standard straight staircase. - Fits in tight loft access situations. - Allowed by code in some jurisdictions for secondary access. Cons. - Requires careful step pattern — climbers must alternate feet correctly. - Not allowed as primary access in most US residential code. - Difficult for children, elderly, or anyone with mobility limitations. - Steep — typically 50–70° angle vs 30–35° for standard. When to use. Loft access. Attic access. Boat / ship-style design statements. Industrial design contexts.
- 10
Code requirements and accessibility
US residential code (IRC) requires specific dimensions for residential staircases: Riser height: Maximum 7¾ inches; minimum varies by jurisdiction. Tread depth: Minimum 10 inches. Width: Minimum 36 inches (between handrails or between wall and handrail). Headroom: Minimum 6'8" (80 inches) above the leading edge of each tread. Handrail: Required on at least one side; height 34–38 inches above leading edge of tread. Guardrail (for open sides): Minimum 36 inches height (sometimes 42 inches for multi-family). Baluster spacing: Maximum 4 inches between balusters (so a 4-inch sphere cannot pass through). Nosing: Required on solid treads; ¾ to 1¼ inches projection. Landings: Required at the top and bottom; minimum landing depth equal to stair width. Variation tolerance: Riser heights and tread depths within a single staircase must not vary by more than 3/8 inch — uneven steps are a major fall hazard. Accessibility (ADA-equivalent): Residential staircases are NOT required to meet ADA standards by most US residential codes. Universal design recommendations: wider treads (12 inches), shorter risers (6 inches), wider stairs (44+ inches), handrails on both sides. Local code variations. Specific requirements vary by jurisdiction. Always verify with local building code before specifying.
- 11
In Room Sketch 3D
After clicking the Staircase tile in the Build Panel and clicking in the room where the staircase sits, the Inspector exposes: - Shape. Straight / L-Left / L-Right / U. - Rise. Total vertical height (typically 96, 108 inches for 8-foot or 9-foot floor heights). - Width. 36, 40, 48 inches. - Length (for straight): total horizontal run. - Direction. Up or Down (determines whether the staircase appears as rising or descending in the floor plan view). - Color. For the stringers, treads, and balusters. In 3D View, the staircase renders as real stairs — visible risers, treads, handrails, balusters, newel posts. Walk mode allows climbing the staircase to test head clearance, landing, and approach. For types beyond the four shipped shapes (spiral, helical, curved, monumental, alternating-tread), model them by drawing a custom shape and noting the design intent in the design name. The 3D rendering will show simplified geometry.
Tips
Place stairs before furniture
Stairs reserve the floor area everything else has to work around. Drop them in before you place furniture, not after — their footprint dictates which walls become usable for seating and which become walkway.
Match the rise to your real floor-to-floor
Most homes are 96 inches (8 feet) floor to floor; some are 108 (9 feet); luxury new construction is 120 (10 feet). The number of steps falls out of that — you don't have to count them yourself. But if the rise is wrong, the whole staircase is wrong.
L-shape direction: stand at the bottom, look up
If a person climbing the stairs would turn left at the landing, that's a left-handed L. If they'd turn right, it's a right-handed L. Set it to match the real staircase you're modeling so the 3D walkthrough actually walks the way the real one does.
U-shape for the smallest footprint
U-shape switchback staircases have the smallest total floor area of the residential shapes. Reach for it when straight or L-shape won't fit.
Avoid spiral or alternating tread as primary access
Code (and common sense) restrict these to secondary access (loft, attic). Don't use them as the only way between floors in a house.
Standard sizes are standard for a reason
Riser 7–7.75 inches, tread 10–11, width 36–40 — these aren't arbitrary. They're what comfortable, code-compliant residential stairs actually are. Don't deviate from them unless the design specifically requires it (monumental staircases use larger treads and shorter risers).
Check the approach in 3D
A staircase that works on paper can have a doorway opening right at the top, an awkward turn into a hallway, or head clearance you forgot about. The 3D walk-up is where you catch all of it.
Common confusions
Treating the staircase as a small rectangle
A single straight flight needs 12–15 feet of run. If you've allocated a 4×4 patch, you're modeling a ladder, not stairs. Use realistic dimensions or pick an L or U shape to fit a real staircase in a smaller footprint.
Forgetting that L-shape has a direction
An L turning left at the landing is a completely different staircase from one turning right — different rooms above and below, different approach to the foot of the stairs. Pick the orientation that matches the real staircase.
Skipping the landing on L or U shapes
L-shaped and U-shaped staircases need a landing at the turn — that's the bit that makes the turn possible. The landing has real size (at least as wide as the stair). Don't try to model a tight corner as a sharp turn with no landing; it won't read right in 3D and it isn't legal in real life.
Using a non-standard riser to 'make it fit'
If a staircase doesn't fit, the fix is a different shape or more floor area — not a 9-inch riser. Code-compliant residential risers are 7–7.75 inches. Stick to standards.
Spiral staircase as primary access
Spirals don't accommodate furniture moves, are dangerous for children and elderly, and aren't code-compliant as primary access. Use them only for lofts and secondary access.
Frequently asked questions
What staircase shapes are most common in residential?
Straight for homes with linear space along a wall. L-shape for corner installations. U-shape (switchback) for tight footprints like townhouses and multi-story flats. These three cover 90%+ of residential staircases. Winders, spirals, and other specialty types are used only in specific tight spaces or as design statements.
What's the difference between L-shaped and U-shaped stairs?
L-shape: One 90° turn at a landing. The two flights are at right angles. U-shape (switchback): Two 90° turns — switchback configuration with a landing between the flights running in opposite directions. U-shape fits in a smaller total floor footprint than L-shape; L-shape fits a longer linear footprint better.
Which staircase shape uses the least floor space?
U-shape (switchback) has the smallest total floor area of the standard residential shapes. The two flights stack next to each other instead of running end-to-end. Spiral staircases use less floor area than U-shape but aren't allowed as primary access in most US residential code.
How wide does a residential staircase need to be?
36 inches minimum (IRC code) — measured between handrails. 36–40 inches is typical; 48+ for grand staircases. Wider is more comfortable and accommodates better furniture moves; narrower is easier to fit in tight layouts.
What's the standard residential stair riser and tread?
Riser: 7–7.75 inches. Maximum residential is typically 7¾ inches (IRC). Tread: 10–11 inches. Code minimum is typically 10 inches. Sum rule: Riser + tread ≈ 17–18 inches for comfortable proportion. See riser and tread standards for details.
How much floor area does a staircase need?
Depends on the shape. Straight: 36–48 inches wide × 12–15 feet long = 50–75 sq ft. L-shape: ~64 sq ft for a 36-inch staircase in a 10×10 corner. U-shape: ~50 sq ft for a 36-inch staircase in a 7×12 footprint. Spiral: 36 sq ft (5×5 foot space). Monumental: 100+ sq ft.
Are spiral staircases allowed as the primary access between floors?
Most US residential codes (IRC and local variants) restrict spiral staircase use to secondary access — lofts, attics, basements with secondary access elsewhere. They're not code-compliant as the only means of egress between floors in most residential settings. Check local code.
What's the minimum headroom over a staircase?
6'8" (80 inches) above the leading edge of each tread — measured straight up to the lowest overhead obstruction (ceiling, beam, soffit). This is consistent across most US residential code.
How do I add a staircase in Room Sketch 3D?
Build Panel → Staircase tile. Click, then click in the room where the staircase sits. Set shape (Straight / L-Left / L-Right / U), rise (total vertical height), width, length, and direction (up or down) in the Inspector. The staircase renders in 3D with real treads, risers, handrails, and balusters.
