Garage · Equipment

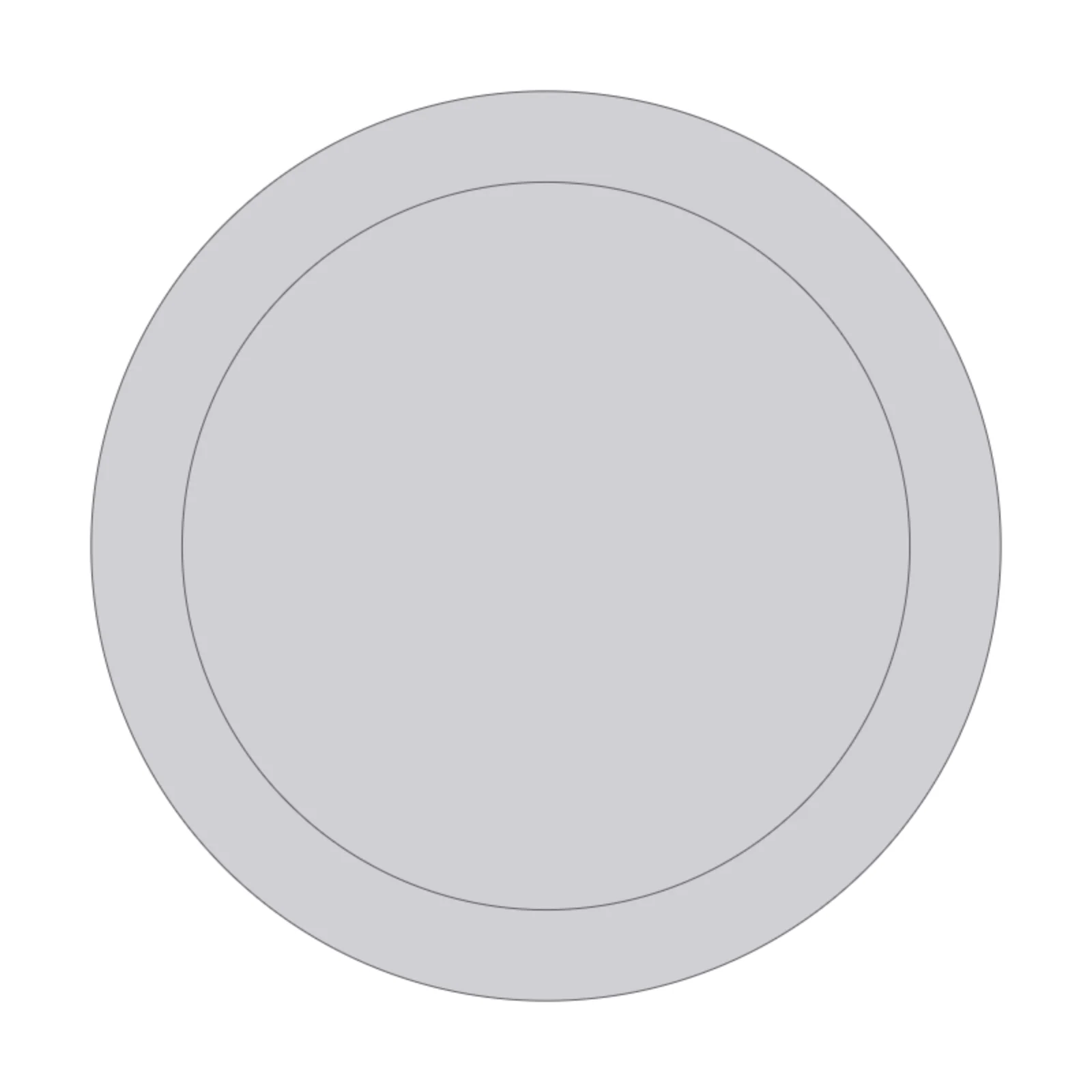

Water Heater
Width 22″Depth 22″Height 60″Shape circle
Overview
A water heater is a tall cylindrical tank that supplies hot water, commonly tucked into a garage, basement, or utility closet. Mapping it reserves a small but tall footprint and the clearance it needs. It shines in a corner or against a wall in a garage or utility room.
Sizing & placement
It has a round 22-inch diameter footprint and stands a tall 60 inches, so it occupies little floor but needs vertical room and overhead clearance for connections. Leave service access around the tank for the valves and fittings on top.
Where it works
Garages, basements, and utility closets; mechanical and storage layouts.
Specifications
| Width | 22 in |
|---|---|
| Depth | 22 in |
| Height | 60 in |
| Shape | circle |
| Size class | standard |
| Room types | garage |
| Default color | #4A5568 |
Configurable options
- Color — any hex value
Frequently asked questions
- How big is the Water Heater?
- It is a round tank 22 inches in diameter and 60 inches tall.
- What clearance does it need?
- Its small 22-inch round footprint needs overhead and side access for the connections on top of the 60-inch tank.
