Design a powder room — four pieces, real elbow room
A powder room is the half bath your guests actually see, and it lives or dies on clearance: a 24-inch vanity and the toilet side by side on the far wall, real elbow room between and beside them, and open floor in front of both. A basket and a plant keep it from feeling like a fixture closet. Every piece is in the RoomSketch3D catalog — search the names, place them in your own plan, and judge the fit in 3D.
The powder room is the one bathroom guests actually see, and it's judged in about four seconds — so the layout has one job: make 38 square feet feel composed instead of crammed. That comes down to clearance: the vanity and toilet share the far wall with real elbow room between and beside them, and the floor in front of both stays open.
One honest note before you start: in a real build, the walls behind these fixtures carry the plumbing — supply lines and the drain stack decide which wall the toilet and vanity can live on. This open plan is for judging the fit: whether the fixtures, the clearances, and the door all coexist. Every piece below is in the RoomSketch3D catalog — search the exact names in the Furnish panel and place them in your own plan.
What you'll need
- •Vanity 24" (24″ × 18″) — small enough to leave elbow room
- •Standard Toilet (20″ × 28″)
- •Storage Basket (16″ round) — spare towels, the softness
- •Small Plant (14″ round) — the sign someone cares
- •For the walls: a Round Mirror 30" and a Towel Rail
- •A 5.5×7 ft footprint — the classic under-stair or hallway half bath
Step by step
- 1
Vanity on the far wall, left of center
Search Vanity 24" (24″ wide, 18″ deep) and set it against the far wall, on the left. Twenty-four inches is the powder room size on purpose — a wider vanity would steal the elbow room the toilet needs. Leave the floor in front of it open; that's where a guest stands at the sink.

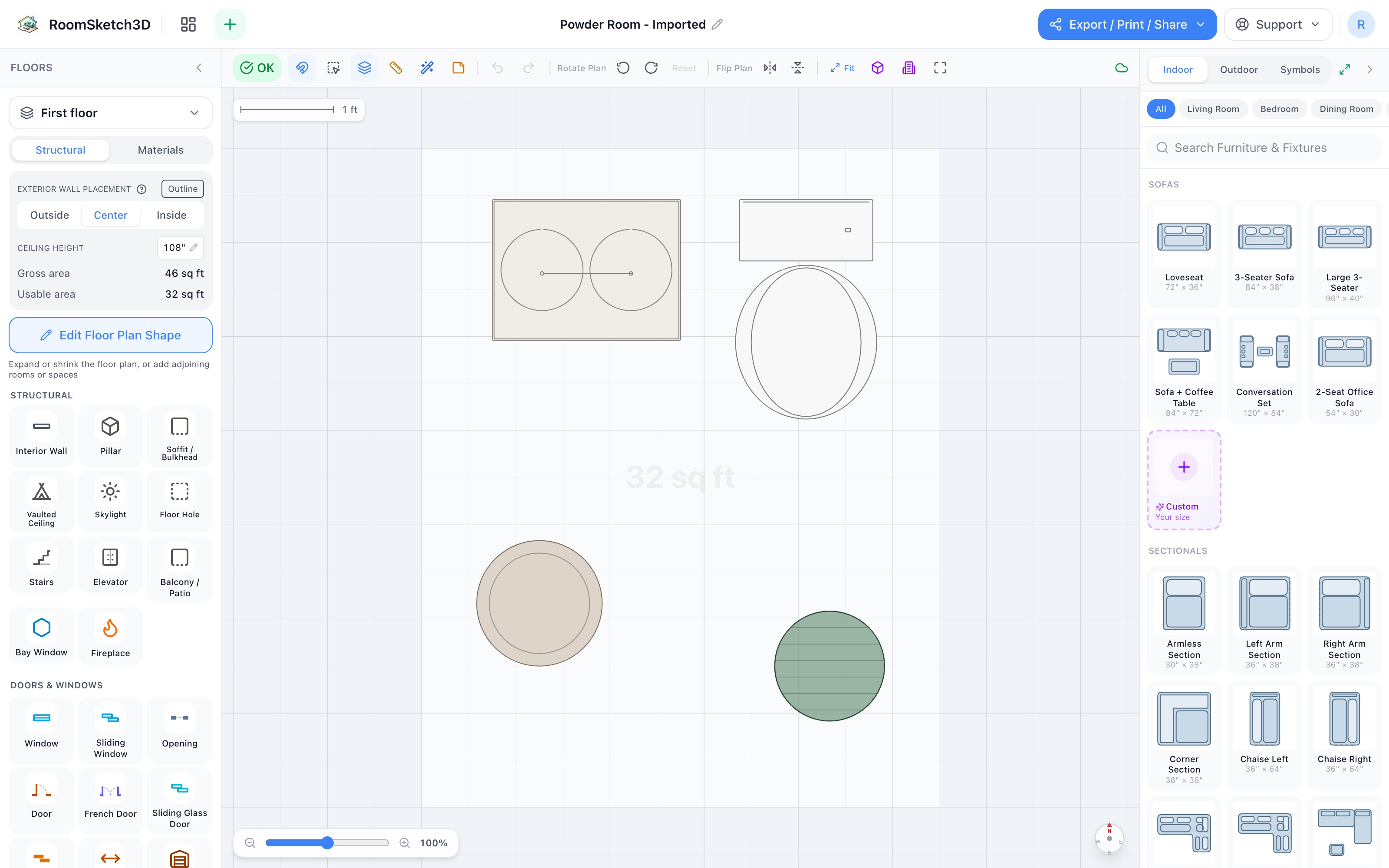

The whole half bath on the plan — both fixtures on the far wall, clear floor in front of each. - 2
Toilet beside it — with elbow clearance
Search Standard Toilet (20″ × 28″) and set it on the same wall, to the vanity's right. The measurement that matters is from the toilet's centerline: keep about 16 inches to the vanity's edge and don't crowd the side wall. Side by side on one wall also means one plumbing run in a real build — tidy on the plan, cheaper in the walls.
- 3
Basket and plant — the softness
Search Storage Basket and tuck it into the near-left corner — spare hand towels live there, in reach but out of the walk path. Then search Small Plant and set it in the near-right corner. Two soft, round shapes against four hard edges are what make the room read as decorated instead of merely plumbed.
- 4
Judge it in 3D — then dress the walls
Switch to 3D and stand in the doorway the way a guest would. Check the floor in front of each fixture and the gap between them. Then think in elevation: a Round Mirror 30" centered above the vanity, and a Towel Rail on the wall within arm's reach of the sink — a guest with wet hands shouldn't have to take a step.

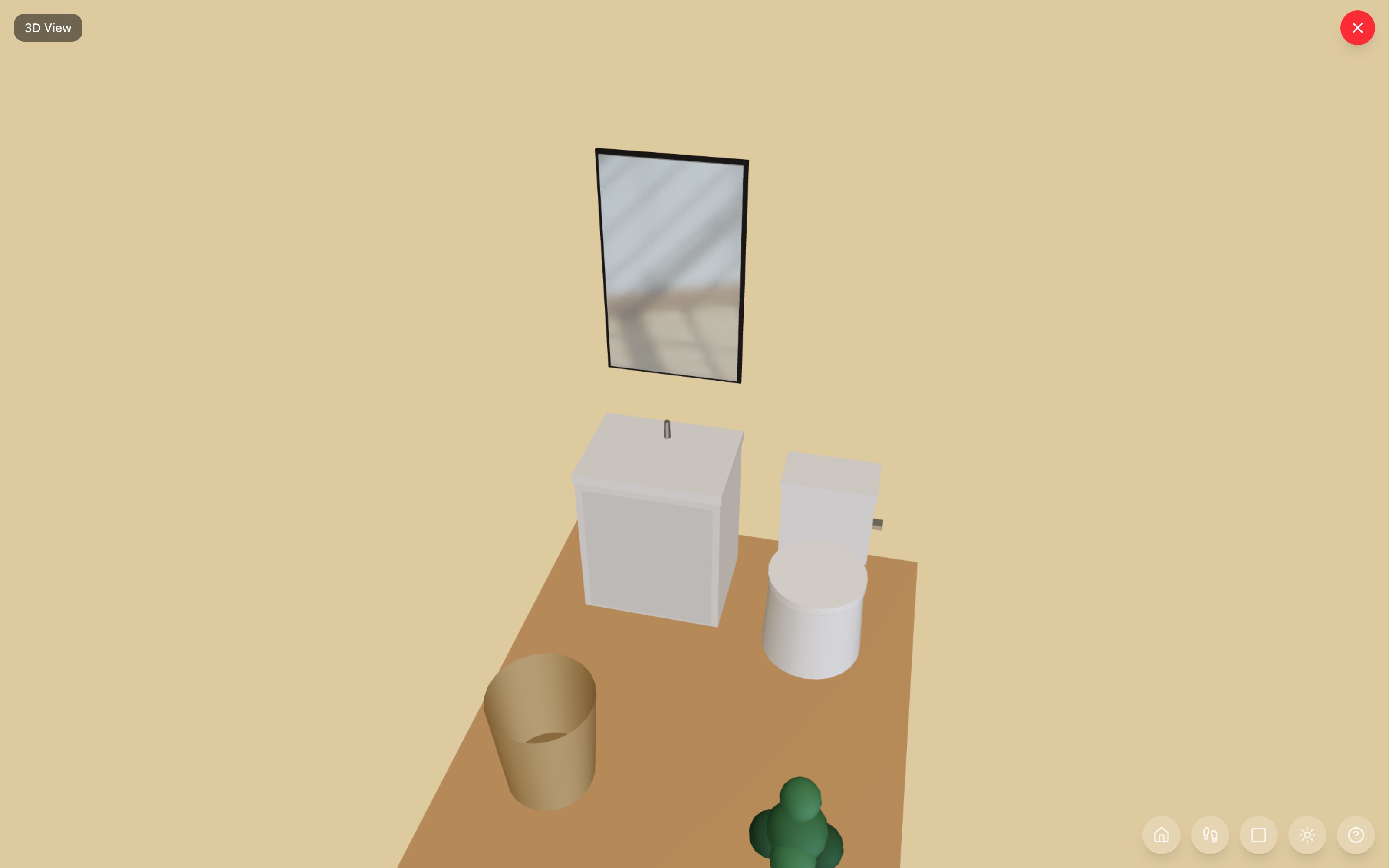

The finished powder room in 3D — composed, not crammed.
Tips
The mirror doubles the room
A Round Mirror 30" centered over the vanity is the single highest-value move in a powder room: it bounces light, and the round shape breaks up a room that is otherwise all rectangles. Hang it so the center lands at eye height.
Towels within one arm, not one step
Mount the Towel Rail on the wall beside the vanity, close enough to reach with wet hands without moving your feet. If a guest has to search for the towel, the layout failed at the last second.
Both fixtures on one wall
Vanity and toilet sharing the far wall isn't just visually calm — in a real build it's one wet wall and one plumbing run. Keep the pair together on the plan and the other three walls stay free for the door, the rail, and breathing room.
Common mistakes
Squeezing the toilet's side clearance
The toilet is measured from its centerline, not its edge: it needs roughly 15 inches of clear space from centerline to the vanity and to the side wall. Slide it too close to either and the room is technically furnished but physically uncomfortable — the exact impression a powder room can't afford.
An oversized vanity in a half bath
A 36- or 48-inch vanity swallows the wall and forces the toilet against the corner. In 5.5×7 feet, the Vanity 24" is the right size — the foot of wall it gives back is exactly the elbow room the toilet needs.
Filling the open floor
The empty floor in front of the fixtures is the design, not wasted space — it's where a person stands, turns, and opens the door. Keep the soft pieces in the near corners; the moment a basket drifts in front of the vanity, the room shrinks by half.
Frequently asked questions
What's the minimum powder room size?
About 3 × 6 feet is the practical floor — enough for a toilet with its centerline clearances and a small sink. This layout uses 5.5 × 7 feet, which is the comfortable version: a real Vanity 24" instead of a corner sink, honest elbow room beside the Standard Toilet, and floor left over to soften.
What furniture makes up a powder room?
Four floor pieces: Vanity 24", Standard Toilet, Storage Basket, and a Small Plant — plus the wall pair, a Round Mirror 30" and a Towel Rail. Search each name in the Furnish panel.
Why plan a powder room in an open layout when real ones have plumbing walls?
Because the plan answers the question the plumber can't: does everything fit? Place the Vanity 24" and Standard Toilet here, check their clearances and the door swing in 3D, and you know the footprint works before any wall is opened. Then the wet wall in your real build decides which wall the pair lands on — the spacing logic travels with them.
