Plan a backyard play zone — fall zones drawn to scale
Play equipment marketing shows you the toy; it never shows you the clearances. A 14-ft trampoline is really a 20-ft circle once you give it the 3 feet of clear ground it needs on every side, and a swing set needs open lawn in front of the swings, not just its own 12×8 footprint. This plan draws all of it to scale in a 32×25 yard — play set on the left, trampoline on the right, a bench where the parents can see both — so you know it fits before anything arrives.
The brochure shows the play set. It does not show the 6 feet of open lawn the swings need in front of them, or the fact that a "14-foot" trampoline claims a 20-foot circle once you add the 3 feet of clear, obstacle-free ground it should have all the way around. Those clearances — not the toys — are what decide whether your yard holds a play zone, and they're invisible until somebody draws them to scale.
So draw them. Set up a 32×25 plan, search the exact names in the Furnish panel, and place the real footprints. If the play set and the trampoline coexist with about 3 feet between them and nothing inside the fall zones, the yard passes — before you order, not after.
What you'll need
- •Play Set (144″ × 96″ — 12×8 ft, with swings and slide) — the left side of the zone
- •Trampoline (168″ across — 14 ft, plus a 3-ft clear fall zone on every side) — the right side
- •Garden Bench (60″ × 18″) — bottom-center, the parents' seat
- •Bird Feeder Pole (18″ × 18″, 84″ tall) — the far corner, out of every fall zone
- •A 32 × 25 ft stretch of yard — measure fence to fence, not lawn edge to flower bed
Step by step
- 1
Draw the yard — and skip the walls
Create a rectangular plan 32 ft wide by 25 ft deep, then leave the exterior walls off — this is a lawn, not a room, and without walls the plan reads as a stretch of yard with the fence lines as its edges. Treat the bottom edge as the side facing the house: that's where the back door opens and where the kitchen window looks out, and it decides where the bench goes later.
- 2
Place the play set on the left
Search Play Set and set it in the upper-left of the yard, its long 12-ft side running parallel to the top fence, about a foot in from the left and top edges. Turn it so the swings face the open lawn — toward the bottom of the plan — and keep 6 feet of grass clear in front of them for the swing arc. A 12×8 footprint sounds modest; with its swing clearance it owns roughly the left third of the yard.

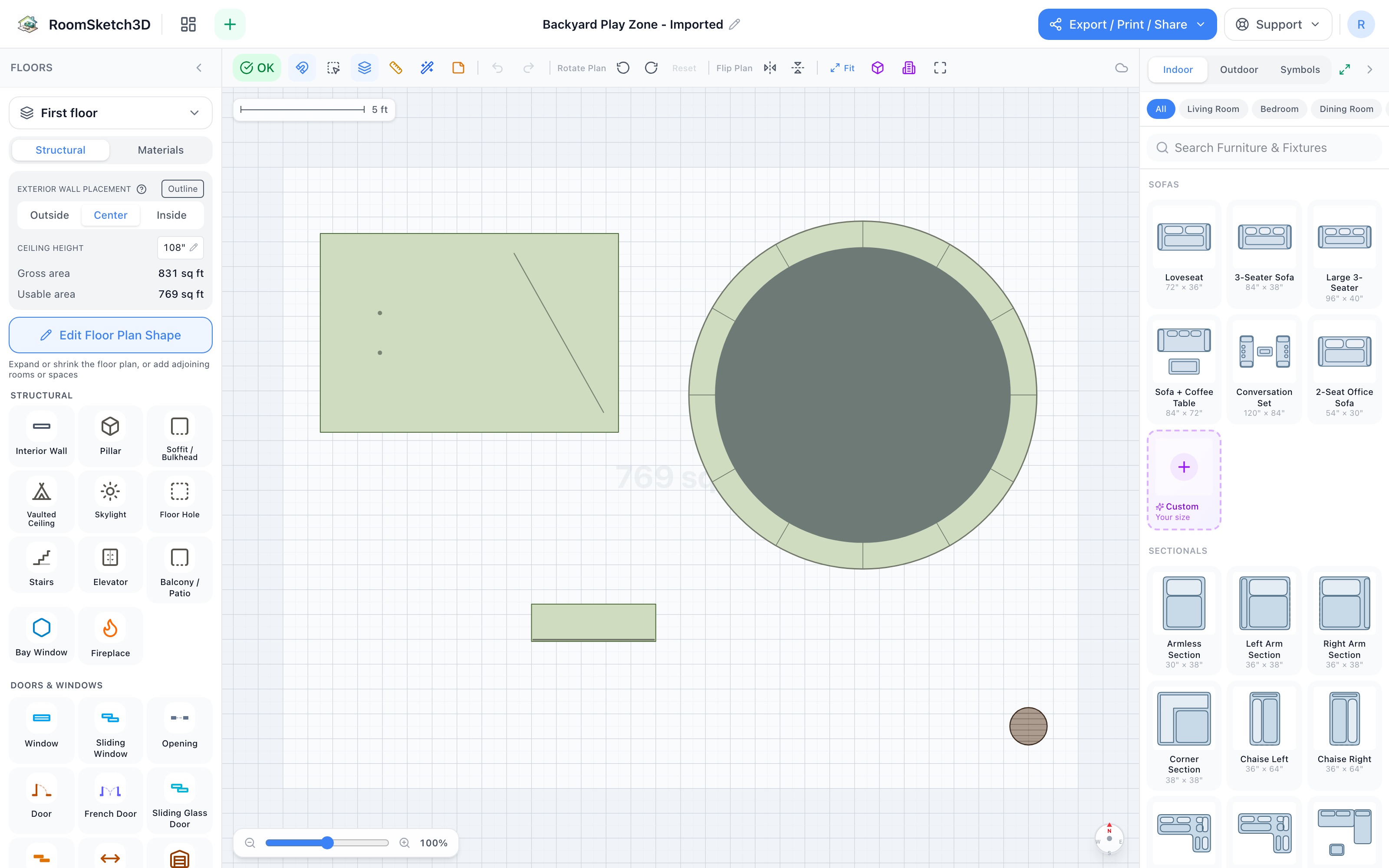

The yard on the plan — the play set's third on the left, the trampoline's 20-ft circle on the right, and about 3 feet of grass between them. - 3
Place the trampoline — and respect the ring around it
Search Trampoline and center it on the right half of the yard, its middle about 21 to 22 feet in from the left fence and near the yard's centerline top to bottom. The frame is 14 feet across, but plan for the 3-ft clear fall zone on every side — a 20-ft circle that must stay inside the fences and free of everything else. Placed this way, the ring clears the right fence by a few inches to spare and leaves about 3 feet of grass between the trampoline's edge and the play set's nearest corner — which is exactly why nothing else in this plan goes anywhere near the middle.
- 4
The bench and the bird feeder
Search Garden Bench and set it bottom-center, about 2 feet off the bottom edge, turned to face up the yard so one seat sees the swings, the slide, and the trampoline at once — the parents' sight-line seat. Then place the Bird Feeder Pole in the far top-right corner, about 18 inches off both fences: outside the trampoline's fall zone, away from the swing arc, and quiet enough that the birds actually come.
- 5
Walk it in 3D
Switch to 3D and stand at the bench. This is where the plan earns its keep: the 8-ft play tower and the trampoline's enclosure net have real height now, so you can check that the bench sees over and past both, that the path from the back door to each piece never crosses a fall zone, and that the far corner's feeder pole stands clear of everything. If two things look crowded from down here, they are.

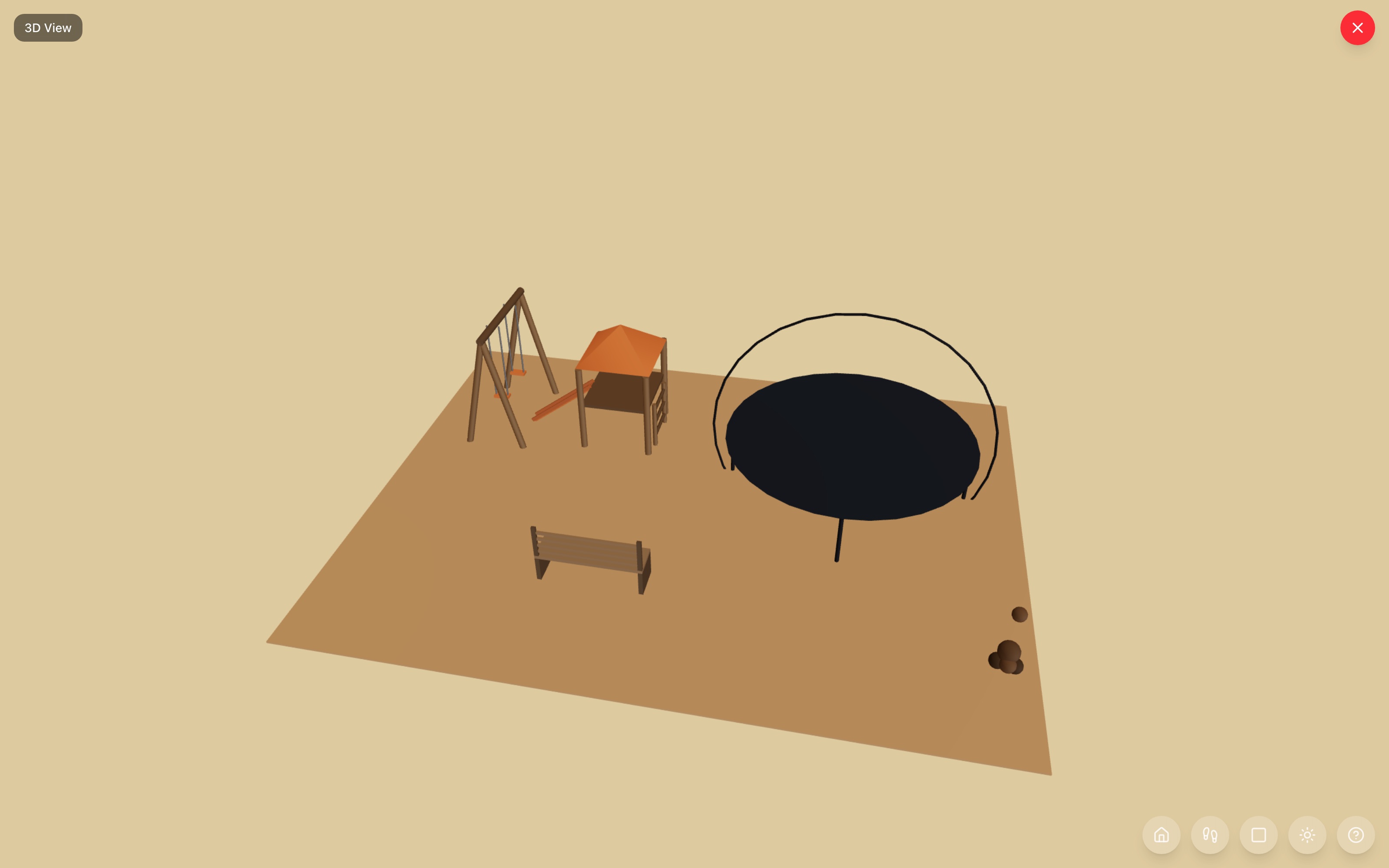

The zone in 3D — every clearance on the plan, standing up.
Tips
The swing arc lives in front of the swings
A moving swing travels well beyond the Play Set frame — keep about 6 feet of open lawn in front of the swing side, and don't let the trampoline's fall zone, the bench, or a path borrow from it. Kids bail out of swings forward, into exactly that strip.
Mark the ground surface on the plan
Grass alone isn't a fall surface. Drop a text label on the plan under the play set — "9–12 in loose-fill mulch" — sized to the footprint plus the 6-ft swing strip, so the soft zone gets planned (and topped up) like everything else. The trampoline's ring stays plain lawn, kept clear.
Check the sight line from the kitchen window
The bench is the weekend seat; the kitchen window is the weekday one. On the plan, note which bottom-edge stretch the window faces and confirm a straight line from it reaches both the swings and the trampoline — then keep future additions (a shed, a tall shrub) out of that line.
Common mistakes
Planning the toy instead of the clearance
A "14-ft trampoline" reads like a 14-ft problem, but with 3 feet of clear ground on every side it's a 20-ft circle — and the play set is 12×8 plus a 6-ft swing strip. Draw the clearances to scale first; they, not the equipment, are what a 32×25 yard has to fit.
Pushing the trampoline against the fence to save lawn
Tucking the frame into a corner steals the fall zone on two sides and puts fence posts where a bouncing kid lands. Keep the full 3-ft ring inside the yard on all sides, even when the middle of the lawn feels like expensive real estate.
Seating inside the fall zones
The natural spot for a bench — close to the action, between the two pieces — is inside the trampoline's ring or the swing arc. Put the bench at the bottom edge facing up the yard instead: the sight line is better and nobody's shins are in the landing area.
Frequently asked questions
How much space does a 14-ft trampoline need?
Plan on a 20-ft circle: the 14-ft frame plus 3 feet of clear, obstacle-free ground on every side, with nothing hard — fences, furniture, the play set — inside the ring. In this 32×25 yard the circle fits on the right half with inches to spare, which is exactly the kind of answer a to-scale plan gives you before the box ships.
Can a play set and a trampoline fit in the same yard?
In a 32×25 yard, yes — the 12×8 play set takes the left with its swings facing the open lawn, the trampoline's 20-ft circle takes the right, and about 3 feet of grass separates them. Smaller yards may hold one or the other; place the exact items on your own plan and let the clearances decide.
Where should the bench go in a backyard play area?
Bottom-center, on the house side, facing up the yard — about 2 feet off the edge. From there one seat watches the swings, the slide, and the trampoline at the same time, stays out of both fall zones, and sits on the natural path from the back door.
