Design a motorcycle bay — wrench room on the chain side
A bike squeezed in beside the car gets a scratched tank and clipped mirrors. A motorcycle bay is the alternative: ten by fourteen feet of garage where the bike parks nose-in with three feet of clear floor on the chain side, a small workbench and stool hold the tools and the tinkering, a tool cabinet rolls to the rear wheel, and a tray under the engine catches what bikes drip. Five pieces — plan it before you claim the strip.
A motorcycle parked beside a car lives a bad life: the tank gets scratched by a swinging door, the bars get clipped by a mirror, and there's never floor to kneel on when the chain needs attention. A 10-foot strip of garage fixes all of it — and that's exactly what a 10×14 bay is for: the bike, three feet of wrench room on the chain side, a bench for the tools, and a cabinet that rolls to the wheel.
Every piece is in the RoomSketch3D catalog — search the exact names in the Furnish panel, place them in your own garage plan, and settle where the bike sleeps before you paint a line on the concrete.
What you'll need
- •Motorcycle (30″ × 84″) — the tenant the bay exists for
- •Small Workbench (48″ × 24″) — the tool-and-tinker bench
- •Counter Stool 24″ (24″ seat — bench height)
- •Rolling Tool Cabinet (42″ × 18″) — rolls to the job
- •Boot Tray (32″ × 16″) — the drip tray under the bike
- •A 10 × 14 ft strip of garage — half of a two-car bay
Step by step
- 1
Park the bike nose-in on the left
Search Motorcycle (30″ × 84″) and park it nose-in along the left side of the bay — front wheel toward the top wall, the bike running straight down the left edge about two feet off the wall so the bars clear. That leaves 3 feet of open floor on its right — the chain side — which is the whole point: room to crouch at the rear wheel with a wrench in hand. Behind the rear tire, keep the rest of the bay's depth clear as the roll-in runway.
- 2
The bench on the top wall, the stool at it
Search Small Workbench (48″ × 24″) and set it flat against the top wall, to the right of the bike's nose — four feet of tool-and-tinker surface at 34 inches high. Then search Counter Stool 24″ and tuck it at the bench: a 24-inch seat is the right height for carburetor surgery and for coffee between rides.

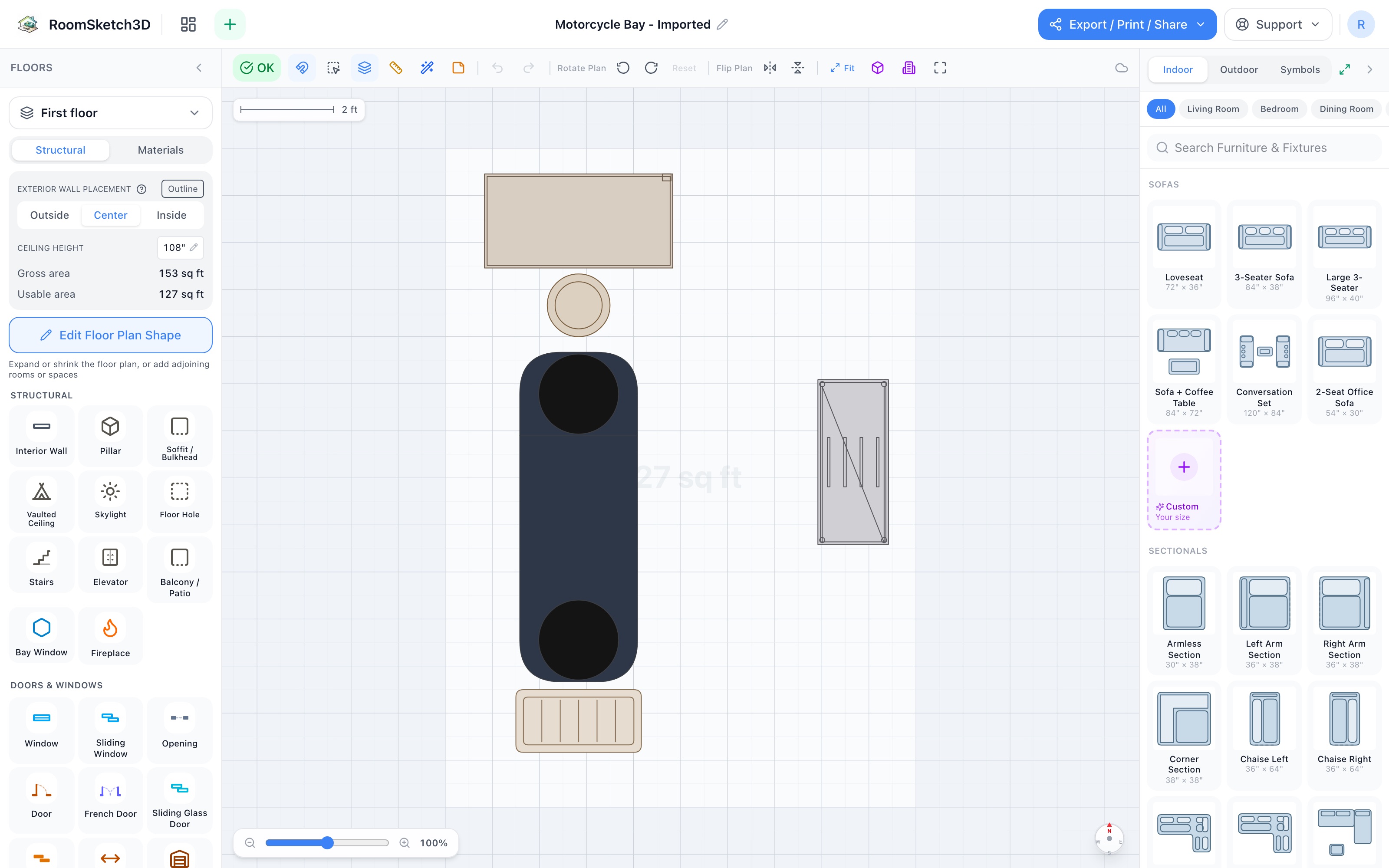

The 10×14 bay on the plan — bike on the left, wrench room on the chain side, bench and cabinet around it. - 3
Tool cabinet on the right wall
Search Rolling Tool Cabinet (42″ × 18″) and run it long-side along the right wall, drawers facing the bike. It parks there — and on chain-lube day it rolls across the lane to the rear wheel, which is why the 3-foot strip stays empty: it's not spare floor, it's the workspace.
- 4
The drip tray under the bike
Search Boot Tray (32″ × 16″) and slide it under the bike, beneath the engine and the chain run. Bikes mark their territory — a low tray catches the oil spots and chain fling before the concrete does, and after a wet ride it's where the boots drain too.
- 5
Prove it in 3D
Switch to 3D and stand in the wrench lane. Swing a leg over in your head: bar clearance off the left wall, three real feet beside the rear wheel, cabinet drawers opening without touching the exhaust, and a straight runway from the rear tire to the garage door. If the lane pinches on the plan, it pinches worse with a torque wrench in your hand.

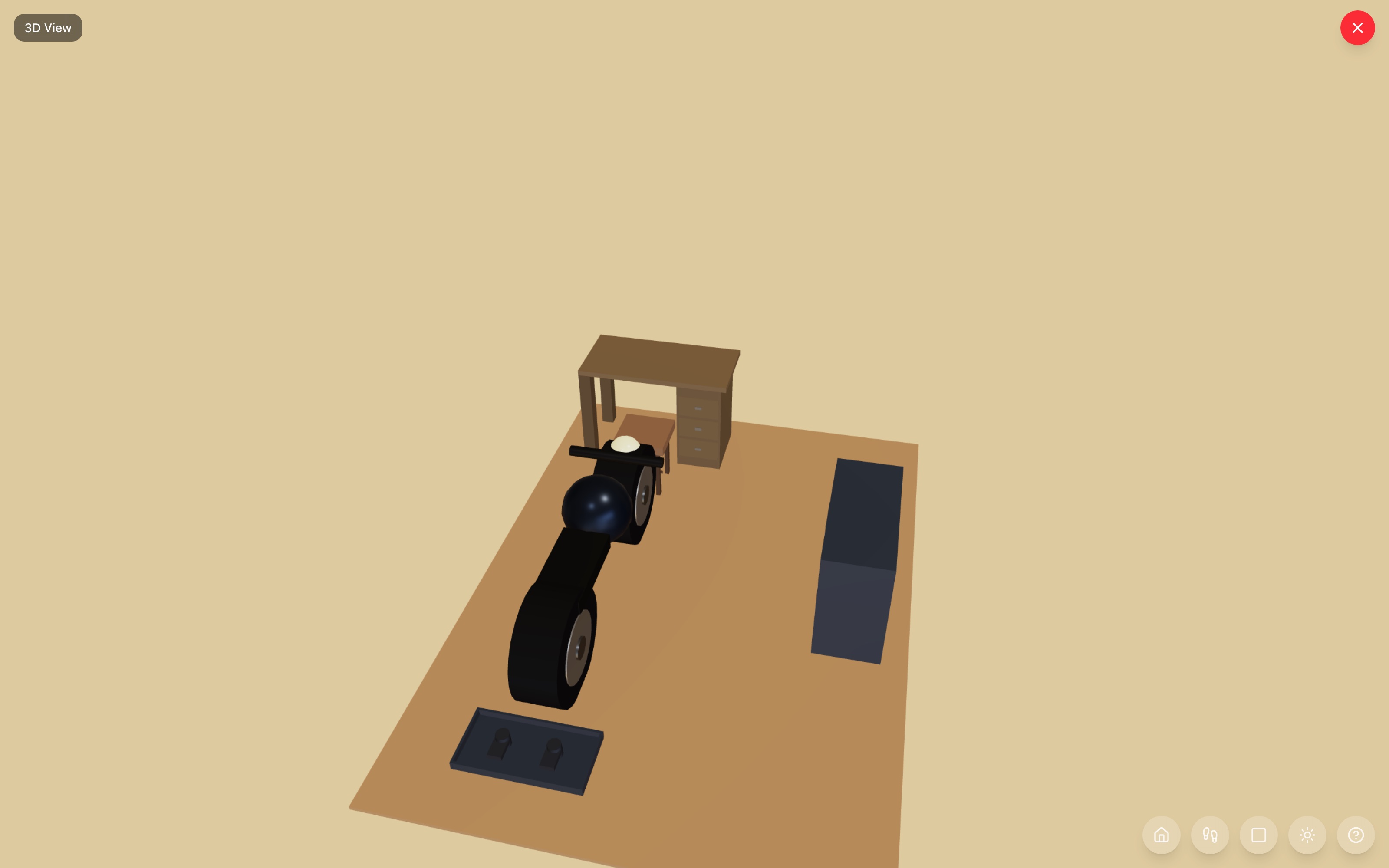

The bay in 3D — the bike on its tray, the bench waiting, the cabinet a roll away from the rear wheel.
Tips
Pegboard above the bench
The wall above the Small Workbench is the best storage in the bay and costs zero floor. Pegboard hangs there as a wall treatment, not a floor item — drop a text note on the plan above the bench so the wall is claimed before anything else creeps onto it.
Winter is tender season
A bike that sits from November to March needs a battery tender, and a tender needs an outlet. Park the nose within a cord's reach of one, and give the tender a permanent home on the bench — not coiled on the seat.
A puck under the kickstand
A side stand concentrates a few hundred pounds on a coin of steel — on hot asphalt or a sealed floor it sinks and scars. A kickstand puck spreads the load; keep it living on the Boot Tray so it's underfoot exactly where the stand comes down.
Common mistakes
Squeezing the bike in beside the car
The classic arrangement — bike wedged in the leftover strip next to a parked car — is how tanks get scratched and clutch levers get snapped by a car door. A dedicated 10-foot bay costs half of one parking spot and ends the contact sport.
Wrench room on the wrong side
The 3-foot lane belongs on the side where the chain and final drive live — that's where you crouch, lube, and adjust. If your bike carries its drive on the other side, mirror the whole plan so the open floor still faces the work.
Parking the cabinet in the runway
The clear strip behind the rear wheel is how the bike rolls in and out — a rolling cabinet left there turns every ride into furniture moving. The cabinet's home is the right wall; it visits the wheel and goes back.
Frequently asked questions
How much garage space does a motorcycle need?
The Motorcycle in the catalog is 30 by 84 inches — two and a half feet wide, seven feet long. Parking alone takes little, but a usable bay adds 3 feet of clear floor on the chain side and a runway behind the rear wheel, which is why this plan claims a 10 by 14 foot strip: half of a two-car bay, with a workbench and tool cabinet included.
Can a motorcycle share a garage with a car?
It can, and that is how most scratched tanks happen — car doors, bumpers, and blind reversing all find the bike eventually. The safer answer is a marked-off strip of the same garage: the bike gets its own bay with wrench room, and the car keeps its full door swing.
What goes in a motorcycle bay besides the bike?
Four pieces: a Small Workbench on the top wall with a Counter Stool 24″ at it, a Rolling Tool Cabinet on the right wall that rolls to the rear wheel for chain work, and a Boot Tray under the engine as the drip tray. Search each name in the Furnish panel.
