Design a workshop corner — a real bench zone in eight by ten
A workshop is a bench and the things that serve it: a 6-foot workbench with a stool at working height, a tool cabinet that rolls to the job, a 5-tier shelf that sends the bins vertical, and a tote staged where the work lane ends. Five pieces, eight by ten feet of garage — plan it before you drag steel around.
Watch it
Design a workshop corner in 40 seconds
Every piece at its true size, clearances checked, then a walk around it in 3D. The list, sizes, and steps are below.
A workshop corner is a bench with a supply chain: the work surface on the wall, the tools that roll to it, the bins stacked beside it, and a clear lane down the middle to move material through. The whole thing fits in eight by ten feet of garage.
Every piece below is in the RoomSketch3D catalog — search the exact names in the Furnish panel, place them in your own garage plan, and check the reach in 3D before you move anything heavy.
Got machines too? This corner is the bench-and-storage starter. The furniture panel's Garage group also has a Shop Tools section — 26 real-size pieces: table saws, a miter saw, drill presses, band saw, router table, jointer, planer, lathe, sanders, grinder, vise, dust collector, shop vac, air compressor, welder, lumber and clamp racks and more. Benchtop tools sit right on the workbench. Search workshop, woodworking or shed, or see plan a full workshop with shop tools.
What you'll need
- •Workbench 6ft (72″ × 24″) — the whole point
- •Counter Stool 24" (bench-height seat)
- •Rolling Tool Cabinet (42″ × 18″)
- •5-Tier Shelf 48" (48″ × 24″, 72″ tall)
- •Storage Tote (24″ × 18″)
- •An 8×10 ft garage corner — one car bay's worth of wall
Step by step
- 1
Bench on the far wall, stool at it
Search Workbench 6ft (72″ × 24″) and set it flat against the far wall — it's the anchor everything else serves. Then search Counter Stool 24" and park it at the bench: a 24-inch seat matches a 34-inch work surface.

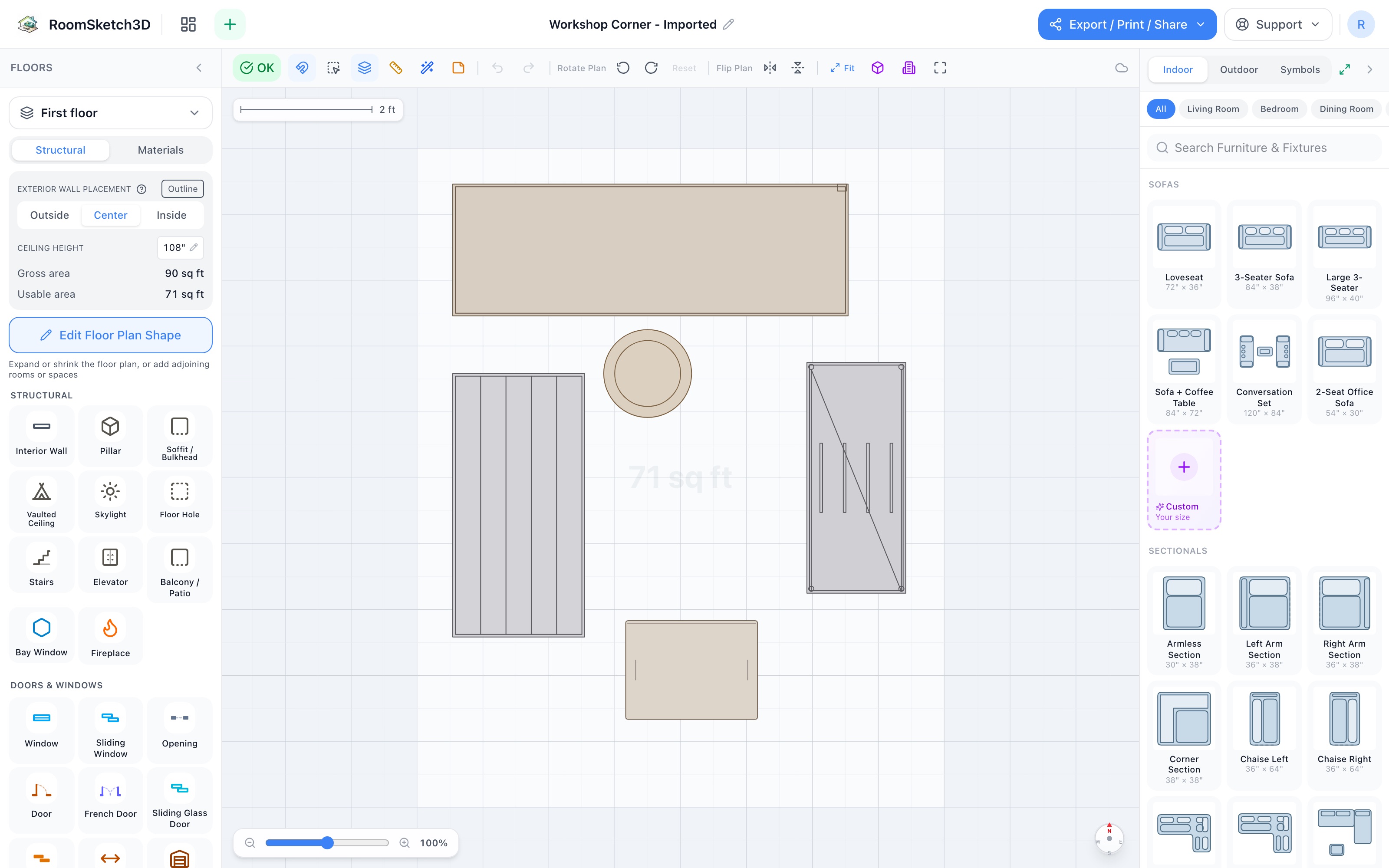

The corner on the plan — bench at the top, storage down both sides, a clear lane in the middle. - 2
Tool cabinet down the right edge
Search Rolling Tool Cabinet and run it along the right edge, drawers facing the lane. It lives there and rolls to wherever the job is — which is why it doesn't get a permanent spot at the bench.
- 3
5-tier shelf down the left
Search 5-Tier Shelf 48" and set it along the left edge, six feet tall. Bins, boxes, and the rarely-used go vertical — the floor stays for the work.
- 4
Stage the tote at the lane's end
Search Storage Tote and drop it at the end of the lane, near the room's mouth. It's the in/out box of the workshop: the current project's parts on the way in, the finished job on the way out.
- 5
Check the reach in 3D
Switch to 3D and stand at the bench with your eyes: stool tucked, cabinet drawers openable into the lane, top shelf reachable without a ladder dance. If the lane between cabinet and shelf feels tight, slide either one along its wall — the plan is cheaper to move than the steel.

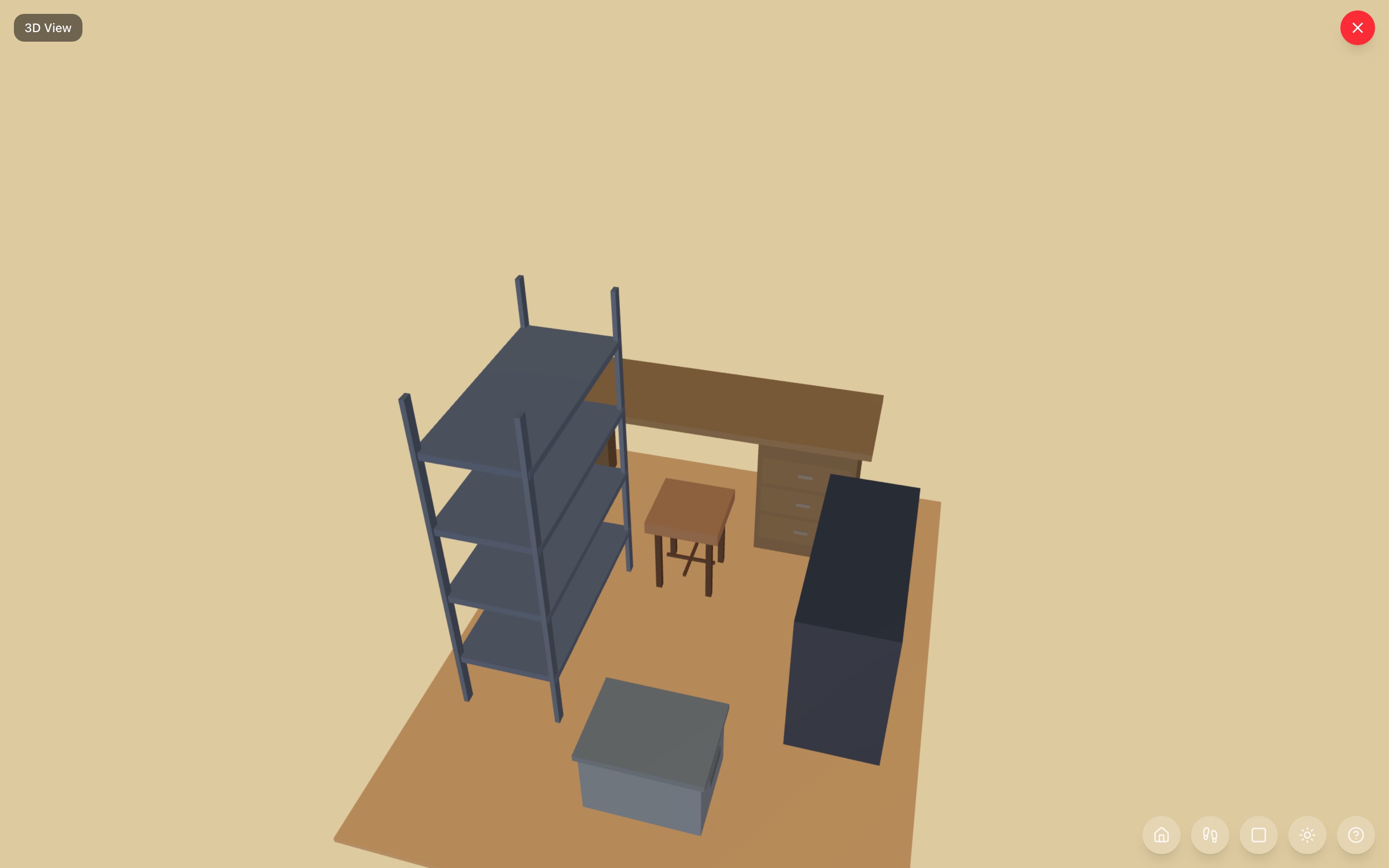

The corner in 3D — a working lane between the cabinet and the shelf.
Tips
Pegboard above the bench
In the real garage, mount a Pegboard Panel on the wall above the bench — every hand tool one reach away, at eye height, with its own outline. The bench top stays clear for work instead of storage.
Keep the lane wider than the cabinet
The rolling cabinet is only useful if it can actually roll — keep the center lane at least as wide as the cabinet plus your hands. Measure the lane with the tape-measure tool.
Heavy low, light high
On the 5-tier shelf, the paint cans and power tools live on the bottom two tiers; the top tiers get the light, seasonal, and seldom-used. It's safer, and the shelf won't tip when you lean on it.
Common mistakes
The bench as a shelf
A workbench that stores things isn't a workbench — it's a very expensive table. Everything that isn't the current job goes to the cabinet, the shelf, or the pegboard.
Parking the cabinet at the bench
If the rolling cabinet lives shoved against the bench, you lose both the bench's knee room and the cabinet's whole reason to roll. Give it its own run of wall and bring it to the job.
No staging spot
Without a landing zone, incoming material lands on the bench and the project stalls. The tote at the lane's end is small, but it's the difference between a workshop and a pile.
Frequently asked questions
Can I add a table saw, drill press or dust collector?
Yes — they're in the Shop Tools section of the Garage group (search workshop or the tool's name). A benchtop drill press, miter saw, planer, sander, grinder or vise dragged onto the workbench sits on top of it in 3D. See workshop shop tools.
How much garage space does a workshop corner need?
8 × 10 feet runs this full setup with a working lane down the middle — about one car bay's worth of wall. The bench and stool alone fit in 6 × 5 if that's all the corner allows.
What furniture makes up a workshop corner?
Five pieces: Workbench 6ft, Counter Stool 24", Rolling Tool Cabinet, 5-Tier Shelf 48", and a Storage Tote. Search each name in the Furnish panel.
Can I swap the bench?
Yes — the layout logic survives the swap. A true corner takes the Corner Workbench and wraps the work surface around the angle; with the wall space, the Workbench 8ft buys two more feet of surface without changing anything else.
