Create photorealistic renders of your design with Render Studio
Render Studio turns a photo of your 3D design into a photorealistic picture of the room. Walk into a room, compose the shot like a photographer, choose one of 16 styles or describe your own — and get your render in about 15–30 seconds.
A floor plan tells you what fits; a render shows you how it will feel. Render Studio takes a photo of your 3D view — the exact room you designed, from the exact spot and angle you choose — and turns it into a photorealistic picture with real materials, real light, and finishing touches.
The quality of the photo you take is the biggest thing you control, so this guide spends most of its time on composing the shot: where to stand, how high to hold the camera, where to point it, and how wide a lens to use.
What you'll need
- •A furnished design in RoomSketch3D
- •AI credits — every account starts with 5 free; 1 credit per finished render
Step by step
- 1
Finish the room in the editor
Render Studio photographs the room exactly as you designed it, so get the plan right first: place the furniture at its real sizes, and set your wall colors, ceiling colors and flooring in Materials → Surfaces, and the cabinet and countertop finishes on those pieces. The render restyles what is already there — the more complete the room, the better the result.

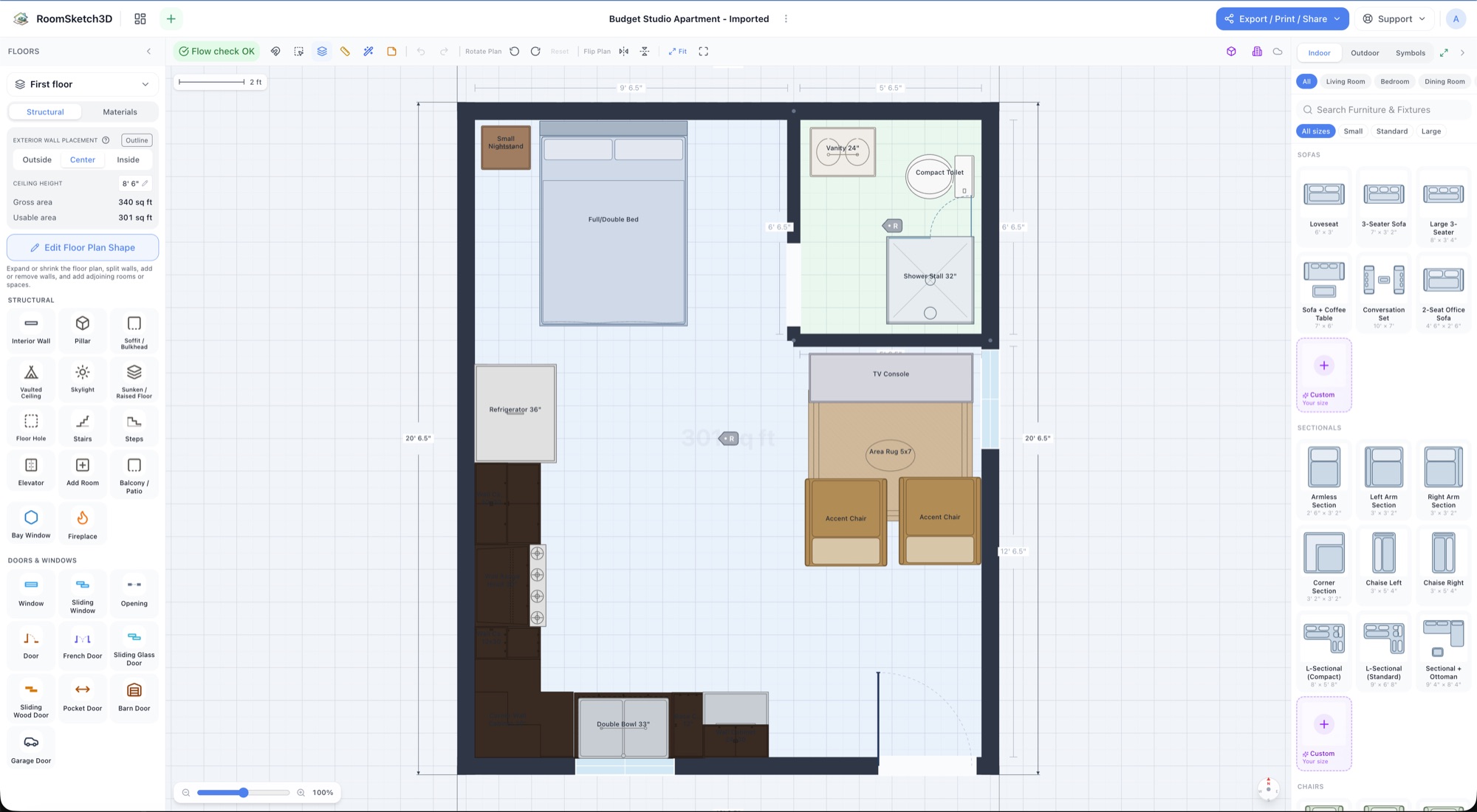

A finished studio apartment — bedroom, kitchen, living area, and bathroom. - 2
Open Export → Photorealistic AI Renders
Click Export / Print / Share at the top of the editor (on a phone, tap the share icon at the top) and choose Photorealistic AI Renders. Render Studio opens beside a 3D view of your plan, ready for you to choose where to stand (next steps). Until you make your first render, a small red dot on the Export button and on this menu item points you here, and the item shows how many free credits you can try it with ("Try it now with 5 free credits" on a new account). Both disappear once your first render is finished. The first time, a short Before you start card explains credits and how your photo is processed — accept it once and it won't appear again. Your credit balance is always shown at the top of the panel, with + Add to buy more.
Photorealistic AI Renders sits in the Export menu, between PNG/JPG/PDF or Print and GLB. - 4
Choose where to stand
When you open the studio from the Export menu, or tap the pin button (Visit another room) next to the photo-shape options, you see your plan from straight above with the hint Tap a room, or anywhere inside or outside, to stand there. - Tap a room's glowing marker to stand inside that room at eye level. - Tap anywhere else (a spot in a room, a deck, the yard, or out beyond the house) to stand exactly there. Outside the house, the camera turns to face the building. - More than one floor? Buttons with your floor names appear at the bottom (Floor to stand on). Pick the floor first, so you can stand on an upper floor or its balcony without walking up the stairs. Dragging to look around isn't a tap, so it won't move you.

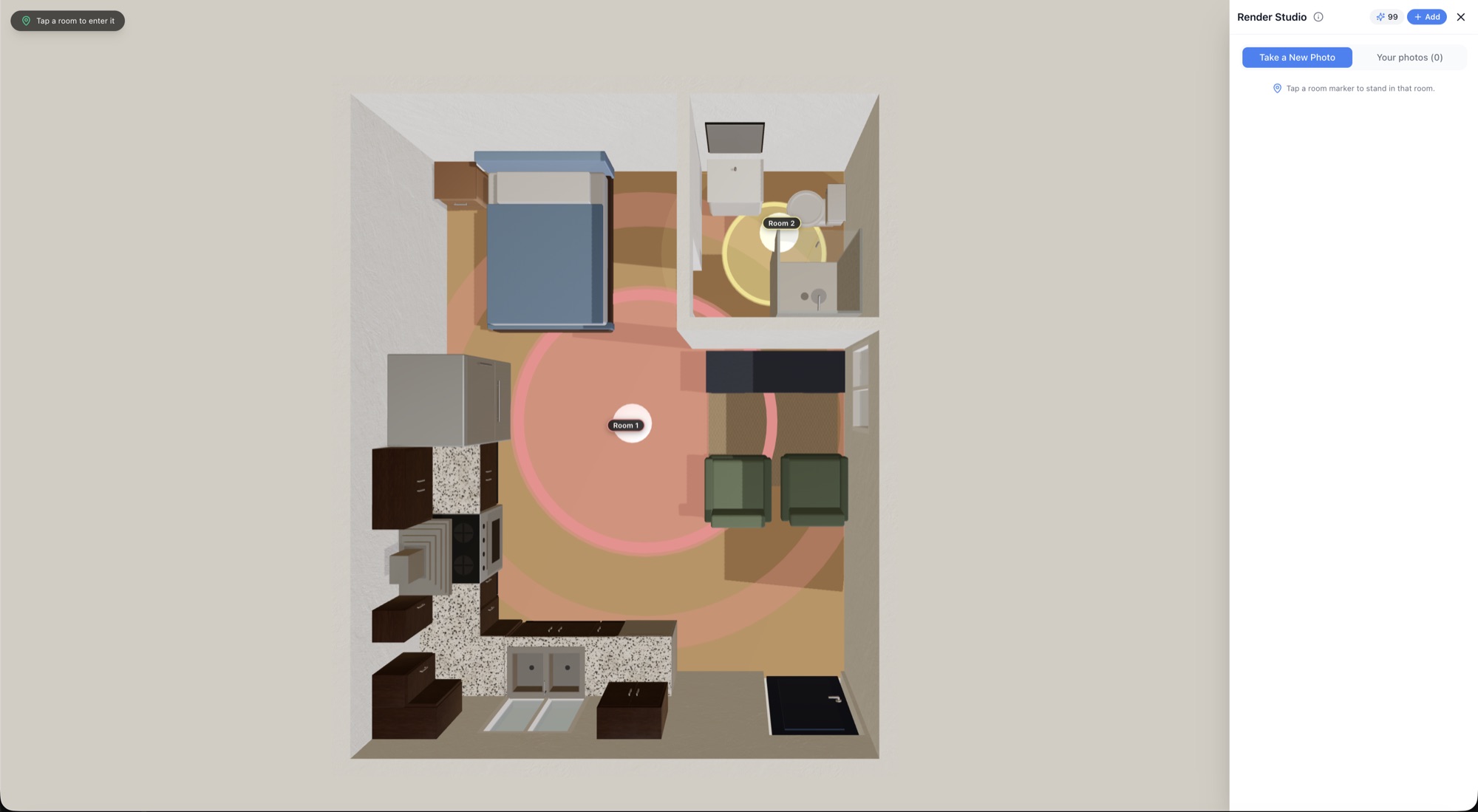

The picker: tap a marker, or anywhere inside or outside the house. - 5
Compose the shot
Now frame the photo. The bright rectangle in the 3D view is the viewfinder — exactly what will be captured. Photo shape — choose Landscape (presentations, laptops), Portrait (phones, stories), or Square (social posts) first, because it changes the viewfinder. Move around — walk to a new spot: on a computer drag to look and use W A S D to move; on a phone drag to look and use the on-screen joystick. Corners and doorways usually make the best vantage points. Then fine-tune with the four camera sliders: Camera height (30–108 in inside, up to 40 ft outside; starts at 66 in) — how high the lens sits off the floor. 66 in is a standing adult's eye level and looks natural for most rooms. Drop it to 40–48 in for a seated view that makes sofas and beds feel inviting; raise it to 75–90 in to see over a kitchen island or show more of the floor and countertops. Camera angle (down / up, −80° to +80°) — tilts the lens. Keep it at or near 0° for the classic architectural look with straight vertical walls. Tilt down a little (−5° to −15°) to show countertops, rugs, and flooring; tilt up to feature a vaulted ceiling, beams, a skylight, or pendant lights. Large tilts make walls lean, which the render will copy. Look direction (left / right, −90° to +90°) — swings the view sideways without moving your feet. Use it to center the window, line up a focal wall, or nudge a fridge out of the edge of the frame. Field of view (40°–120°, starts at 90°) — how wide the lens is. 90° fits most of a room, like a real-estate photo. Go wider (100°–120°) for small spaces such as bathrooms, accepting some stretching at the edges. Go narrower (50°–70°) for a natural, magazine-style shot of one area — a reading nook, a vanity, a range wall. Ceiling — the switch under the sliders. The studio starts with the ceiling on, the way a real photo of a room looks. Untick it to leave the ceiling out (handy for a view down into the rooms from outside). It's the same setting as the 3D view's Ceiling switch.
Opened from the 3D view: standing in the bedroom, with the camera sliders and the Ceiling switch. - 6
Shoot the outside of the house
For a picture of the outside, tap Visit another room (the pin button) and tap a spot in the yard or beyond the house. You stand there facing the building, and Camera height now goes up to 40 ft, high enough to look down on a three-storey house. Tilt Camera angle down to aim at it. Untick Ceiling to look down into the rooms from above, like a dollhouse photo. Walk back inside and the height limit drops to 9 ft again.
Outside: Camera height at 18 ft, tilted down, with the Ceiling off. - 7
Take the photo, then choose the look
When the viewfinder shows what you want, tap Take photo. Taking photos uses no credits — a credit is used only when you generate a render — so take as many as you like; they're kept under Your photos. (Just want the plain picture? Tap the photo to open it full screen and use the download button — see Save a picture of your 3D view without AI.) Tap a photo to open it, then choose: Style — one of 16 curated looks: Minimalist, Scandinavian, Modern, Mid-century modern, Industrial, Bohemian, Modern farmhouse, Japandi, Coastal, Traditional, Transitional, Art deco, Rustic, Mediterranean, Maximalist, or Wabi-sabi. Each sets the palette, materials, furniture character, textiles, and decor. Lighting — Match style (auto) lets the style decide, or pick Bright daylight, Warm evening, Golden hour, Soft ambient, Cozy lamp-lit, or Dramatic. Window view — Keep as-is, or put a Backyard garden, Front yard, City skyline, Open sky, Mountains, or an Ocean view outside your windows. Style description — this is the exact text sent with your photo. Tap Edit to write your own, up to 1,000 characters ("walnut cabinets, honed white quartz, brass hardware, morning sun"); tap Reset to go back to the preset. Changing Style, Lighting, or Window view afterwards replaces a custom description — you'll get a chance to Undo.

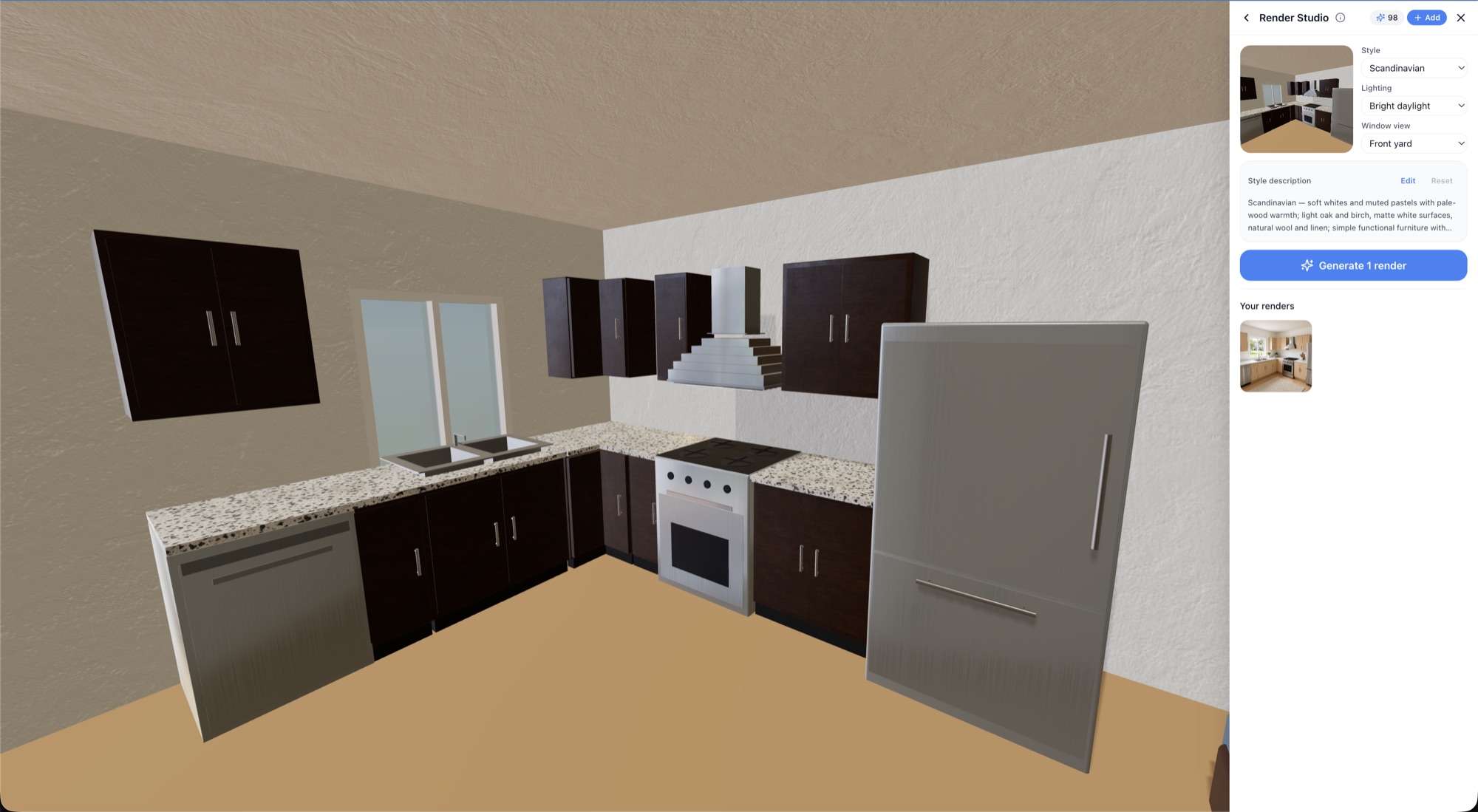

The framed kitchen, with Scandinavian style, Bright daylight, and a Front yard window view. - 8
Generate your render
Tap Generate 1 render. In about 15–30 seconds the finished picture appears under Your renders, and one credit is used. If a render fails, its credit comes back automatically. Want to compare directions? Keep the same photo and generate again in another style — each render is saved under that photo.

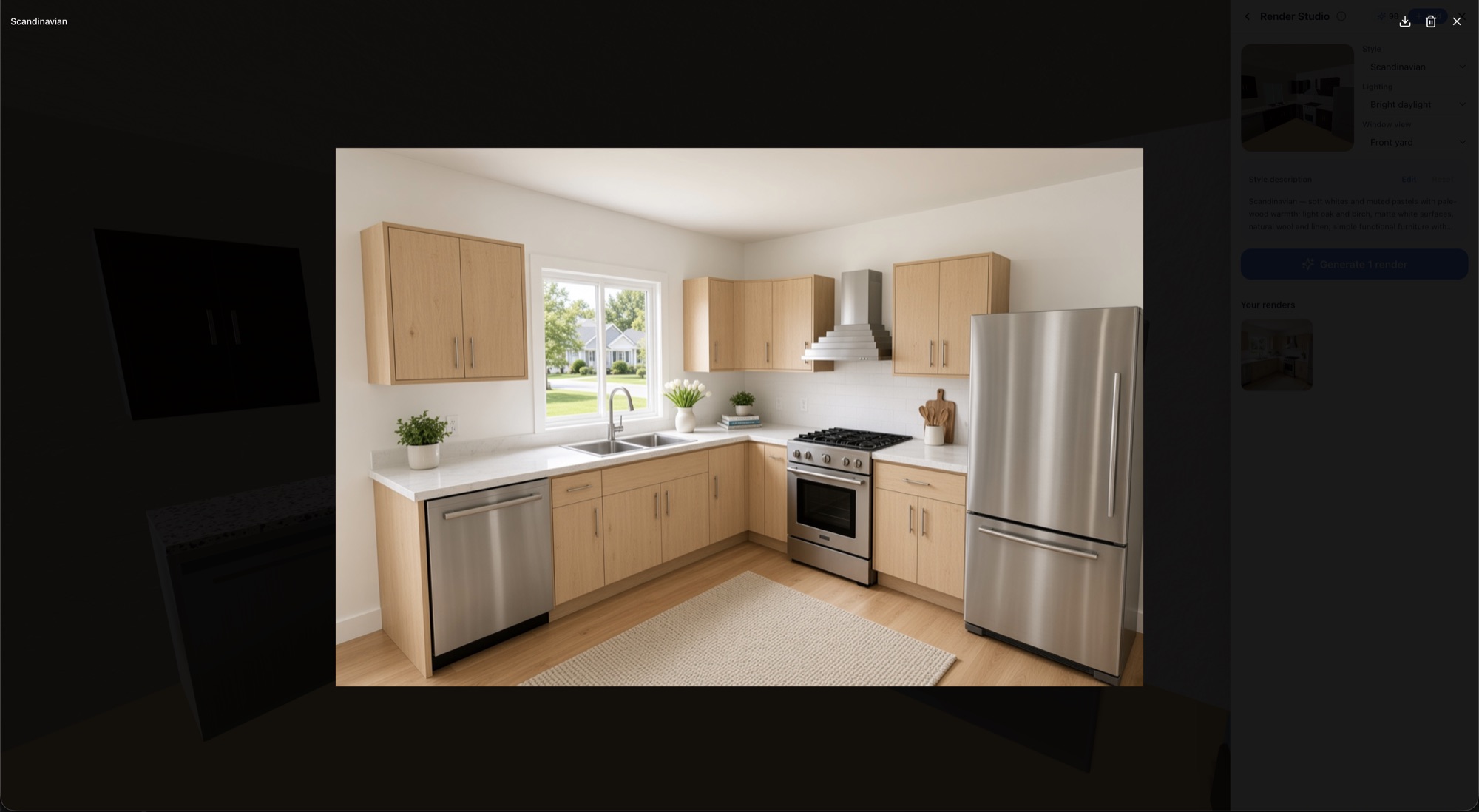

The same kitchen, rendered in Scandinavian style with a front-yard view. - 9
Zoom in, download, or delete
Tap any render to open it full screen. Pinch (phone) or scroll (computer) to zoom, drag to pan around, and double-tap or double-click to jump in and out. Use the download button to save it — on iPhone, iPad, and Android it goes straight to your photos — or the trash button to delete it. Deleting a photo also deletes the renders made from it.

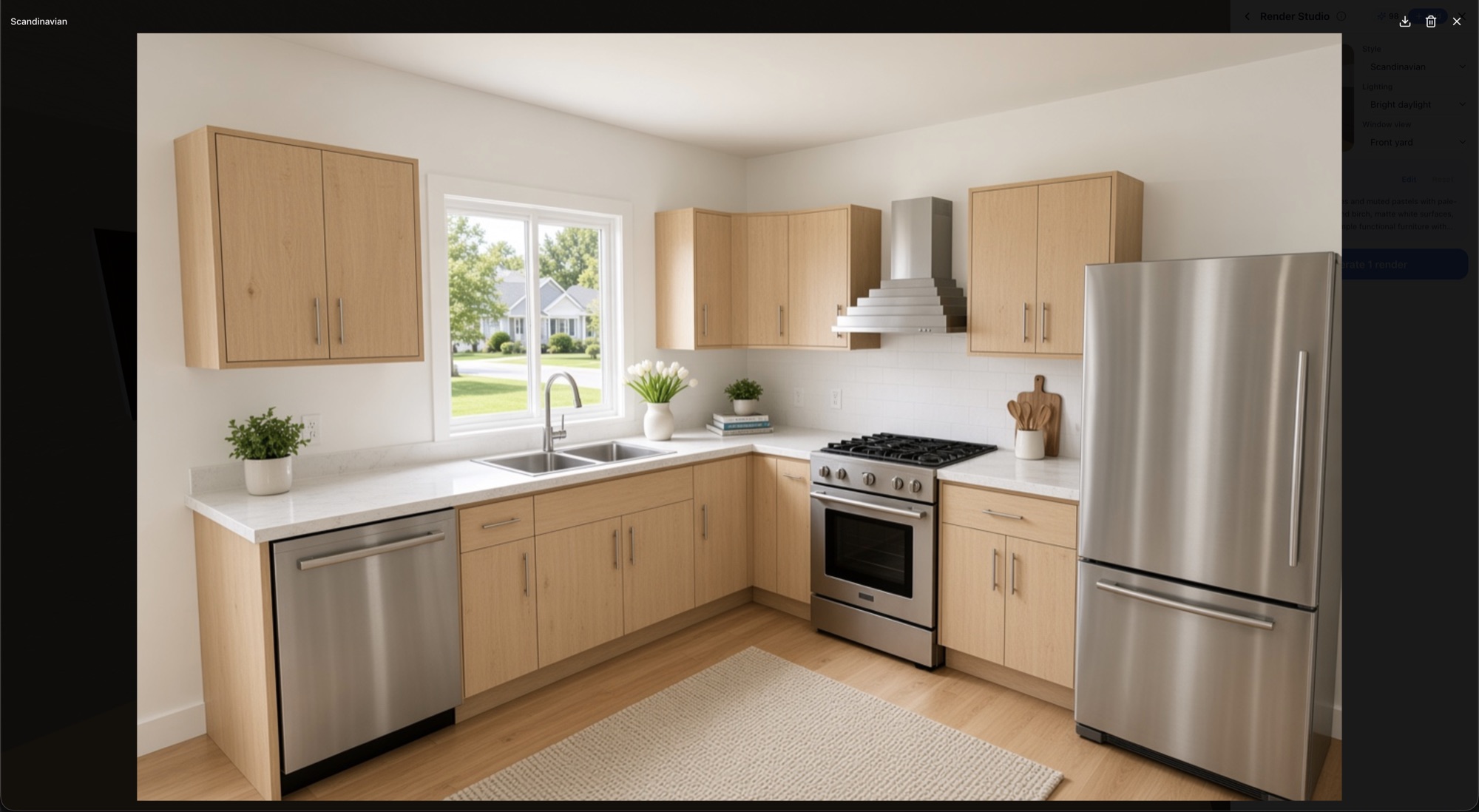

Zoomed in on the finished render, with download and delete at the top right. - 10
Render photos from your other designs — without leaving this one
Your photos shows the photos taken in the design you have open. Tick Include photos from other floor plans to see every photo you've taken across all your designs, each with a count of how many renders it already has. Tap any of them to pick a style and generate a render right here — handy when a client calls about last month's kitchen while you're working on a new plan. Untick the box to go back to just this design.

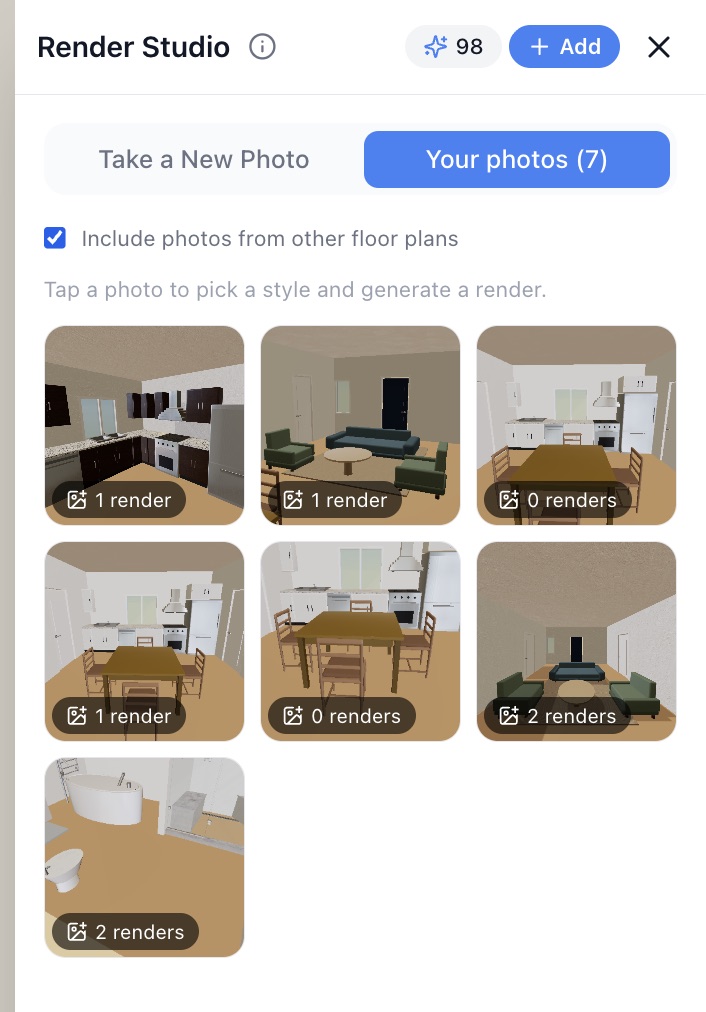

Photos from every floor plan on your account, each with its render count. - 11
Add AI credits when you need them
Your balance is always at the top of Render Studio. Tap + Add to open Add AI Credits: How credits are used — one credit creates one photorealistic render. A credit is used only when a render finishes; if one fails, its credit is returned automatically. Every account starts with 5 free credits. They never expire — there is no monthly reset and no deadline. Buy a pack today and use it next week or next year. They work everywhere — credits belong to your account, not a device. A pack bought on iPhone, iPad, Android, or the web works on every device you sign in to. One-time packs, no subscription — the button shows the pack size and its price in your currency. On iPhone and iPad you pay through the App Store, on Android through Google Play, and on the web through secure Stripe checkout. Nothing renews.

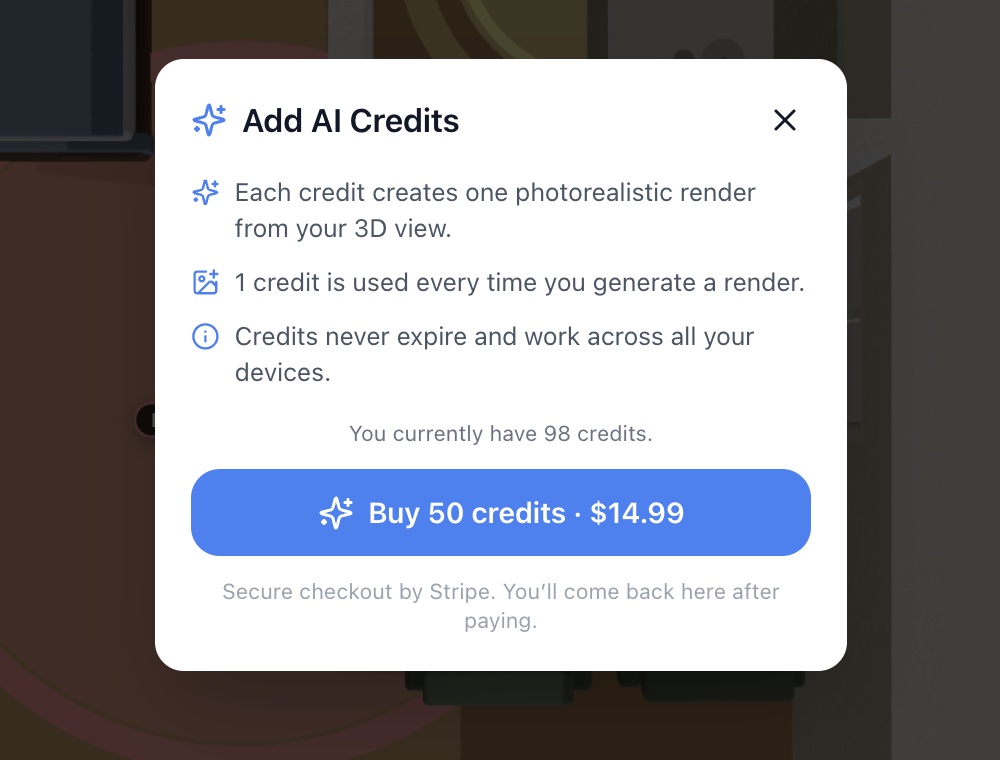

Add AI Credits — one credit per render, credits never expire, and they work on all your devices.
Tips
Shoot toward the light
Stand with your back to the darker side of the room and frame the windows. Renders look brightest and most natural when daylight comes from inside the frame.
Keep the camera level
A Camera angle of 0° keeps walls vertical, the way professional interior photos are shot. Use height and look direction to adjust the frame before you reach for tilt.
Fill the frame
Empty floor and blank walls give the AI nothing to style. Step closer, or narrow the field of view, until furniture fills most of the viewfinder.
One photo, several styles
Rendering the same photo in two or three styles is the fastest way to choose a direction before you buy paint, cabinets, or furniture.
Common mistakes
Using the widest field of view everywhere
At 110°–120° furniture at the edges stretches, and the render keeps that stretch. Save ultra-wide for small rooms; 80°–90° looks more natural elsewhere.
Expecting an exact copy
Render Studio restyles the room you designed, but like any AI image it can add or change small details. Use renders for look and feel, and your floor plan for exact measurements.
Frequently asked questions
How much does a render cost?
One AI credit per finished render. Every account starts with 5 free credits; more are sold as one-time packs on iPhone, iPad, Android, and the web — no subscription. Credits never expire and work on every device you sign in to.
How long does a render take?
Usually about 15–30 seconds. You can close the studio while it works; the render will be waiting under that photo.
What happens if a render fails?
Its credit is returned automatically, and you can try again.
Can I render the same photo in different styles?
Yes. Open the photo, change the style, lighting, window view, or description, and generate again. Every render is kept under that photo.
Where else can I open Render Studio?
From the Export menu (Photorealistic AI Renders) or from the blue AI Render button at the top right of the 3D view. The Export menu opens the picker so you choose where to stand; the 3D view's button opens the studio at the view you were looking at. Right-clicking the 3D view no longer opens a Basic / Photorealistic menu: right-click and drag (or a two-finger drag on a trackpad) just pans the view, so use the AI Render button.
What is the red dot on the Export button?
It points you to Photorealistic AI Renders until you've made your first render. The same dot sits on the menu item, with a line showing how many free credits you can try it with. Once your first render finishes, both go away.
Why does Render Studio open on a different angle from my 3D view?
From the Export menu it opens on an overhead view so you can choose where to stand. Tap AI Render in the 3D view instead and it opens at the view you're looking at. If you were looking down from above, you're placed at eye level in the room under the middle of the screen, facing the same way.
Can I render the outside of my house?
Yes. In the picker (or after tapping Visit another room), tap a spot outside the house. You stand there facing it, and Camera height goes up to 40 ft. Untick Ceiling to look down into the rooms.
Can I save the photo without making an AI render?
Yes. Taking a photo uses no credits. Open it from Your photos, tap the photo to see it full screen, and use the download button — you get the plain 3D picture with no AI and no credit used. See Save a picture of your 3D view without AI.
Can I use the renders for my business or clients?
Yes. You own your AI renders and may use them commercially, as described in our terms.
