Dust Collector

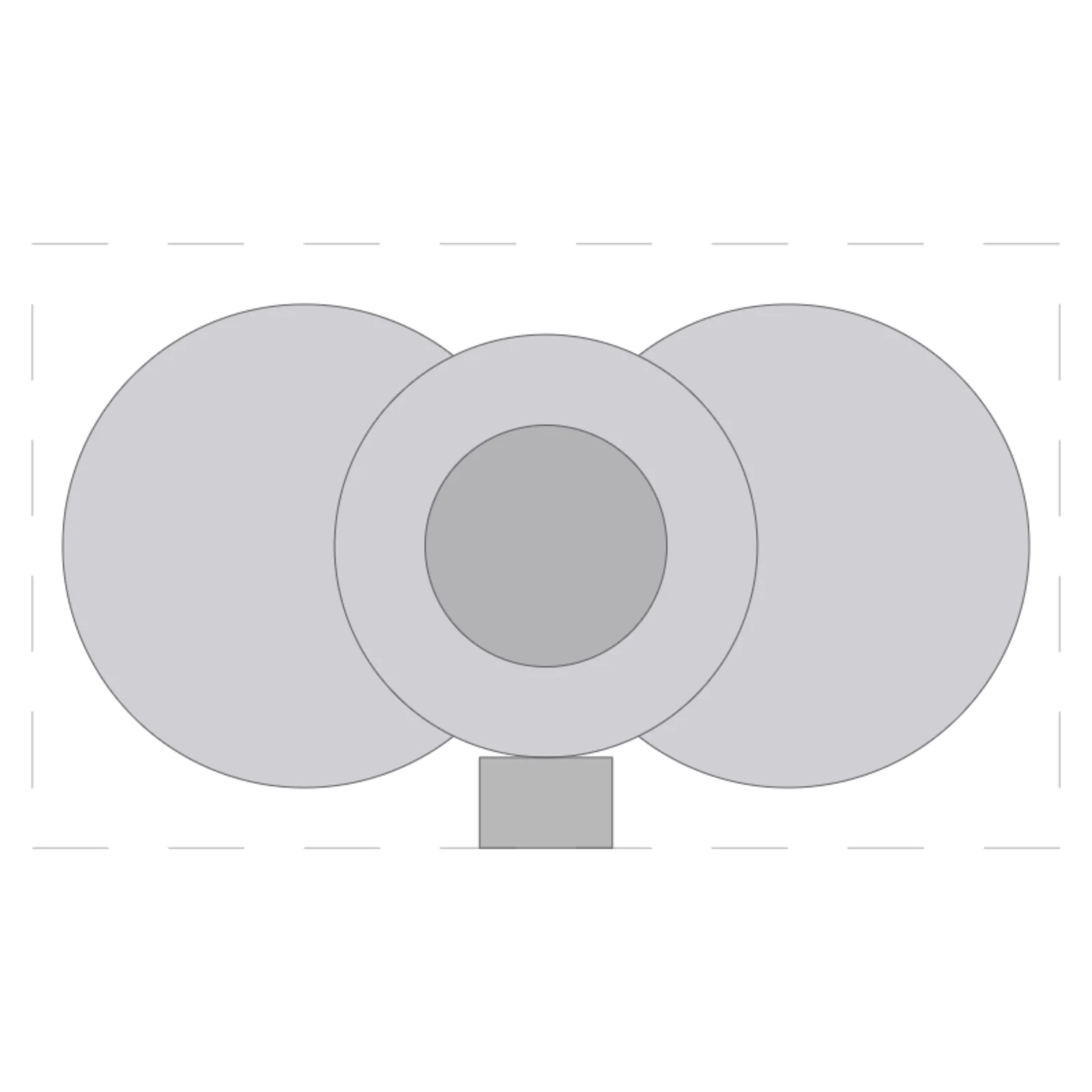

Width 34″Depth 20″Height 70″Shape rectangle
Overview
A dust collector pulls chips and fine dust from saws, planers, and jointers through hoses or ducts into a bag or bin. It keeps a woodshop cleaner and healthier to work in, and shines in a corner central to the machines it serves.
Sizing & placement
It takes a 34 by 20 inch footprint and stands 70 inches tall. Short, direct hose runs work best, so place it close to the heaviest dust producers and leave room to reach the bag or bin for emptying.
Where it works
Garages and woodworking shops with several stationary machines.
Specifications
| Width | 34 in |
|---|---|
| Depth | 20 in |
| Height | 70 in |
| Shape | rectangle |
| Size class | standard |
| Room types | garage |
| Default color | #3F6E4A |
Configurable options
- Color — any hex value
Frequently asked questions
- How big is the dust collector?
- It is 34 inches wide, 20 inches deep, and 70 inches tall.
- Where should a dust collector go?
- Near the machines that make the most chips, such as the planer and table saw, so hose runs stay short, with access to empty it.
