Design a home gym corner — cardio, weights, and a stretch zone in eight by ten
A home gym is six pieces and eighty square feet: a rubber stall mat so the floor survives, a treadmill for the cardio days, a dumbbell rack with the weights facing you, a flat bench with room to lift, a yoga mat for the stretch, and a vertical stand for the pairs you actually use. Every piece is in the RoomSketch3D catalog — search the names, place them in your own room, and check the clearances in 3D.
A home gym isn't a membership — it's a corner with a floor that can take it. The whole thing fits in eight by ten feet: a stall mat to protect what's under the iron, one cardio machine, the dumbbells racked where you can see them, a bench with lifting room around it, and a strip of floor that belongs to stretching.
Every piece below is in the RoomSketch3D catalog — search the exact names in the Furnish panel, place them in your own room, and walk the clearances in 3D before anything heavy comes through the door.
What you'll need
- •Rubber Stall Mat (6×8) (72″ × 96″) — the floor protection everything stands on
- •Treadmill (36″ × 80″)
- •Dumbbell Rack (3-Tier) (60″ × 24″) — weights facing the room
- •Flat Bench (14″ × 48″)
- •Yoga Mat (24″ × 68″) — the stretch zone
- •Vertical Dumbbell Stand (24″ × 24″)
- •An 8×10 ft corner — garage bay, basement end, or spare-room wall
Step by step
- 1
Lay the stall mat first
Search Rubber Stall Mat (6×8) and place it in the corner you're claiming — it's the gym's footprint, and every dropped dumbbell lands on rubber instead of the floor. Mats underlay, so the equipment drops right on top.

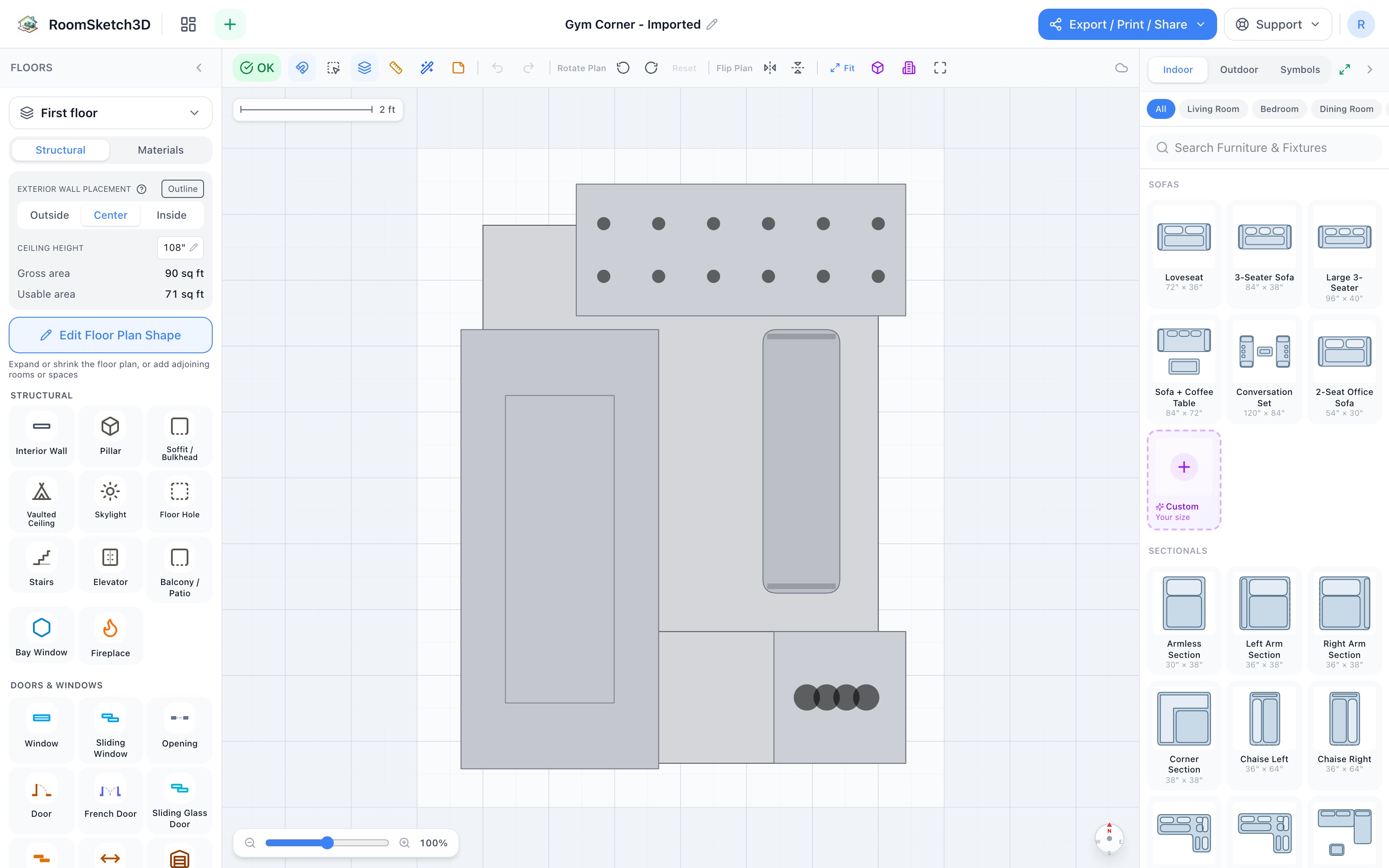

The whole gym on the plan — six pieces on and around a 6×8 stall mat. - 2
Rack on the far edge, weights facing you
Search Dumbbell Rack (3-Tier) (60″ wide) and set it along the far edge of the mat, rotated so the dumbbells face the room. Weights you can see are weights you use; weights facing the wall are shelving.
- 3
Treadmill down the left
Search Treadmill (36″ × 80″) and run it down the left side of the mat, belt pointing into the room. Keep 24 inches clear at the back — the dismount zone is a safety rule, not a suggestion.
- 4
Bench center-right, stand in the corner
Search Flat Bench and place it center-right with open floor on both sides — that air is where the presses and rows happen. Then search Vertical Dumbbell Stand for the bottom-right corner: the two pairs you use every session, one step from the bench.
- 5
Yoga mat across the bottom, then check it in 3D
Search Yoga Mat and lay it across the bottom of the stall mat — a full-length stretch zone that no machine is allowed to creep into. Switch to 3D and orbit the corner: dismount room behind the treadmill, lifting air around the bench, every dumbbell reachable without stepping over anything.

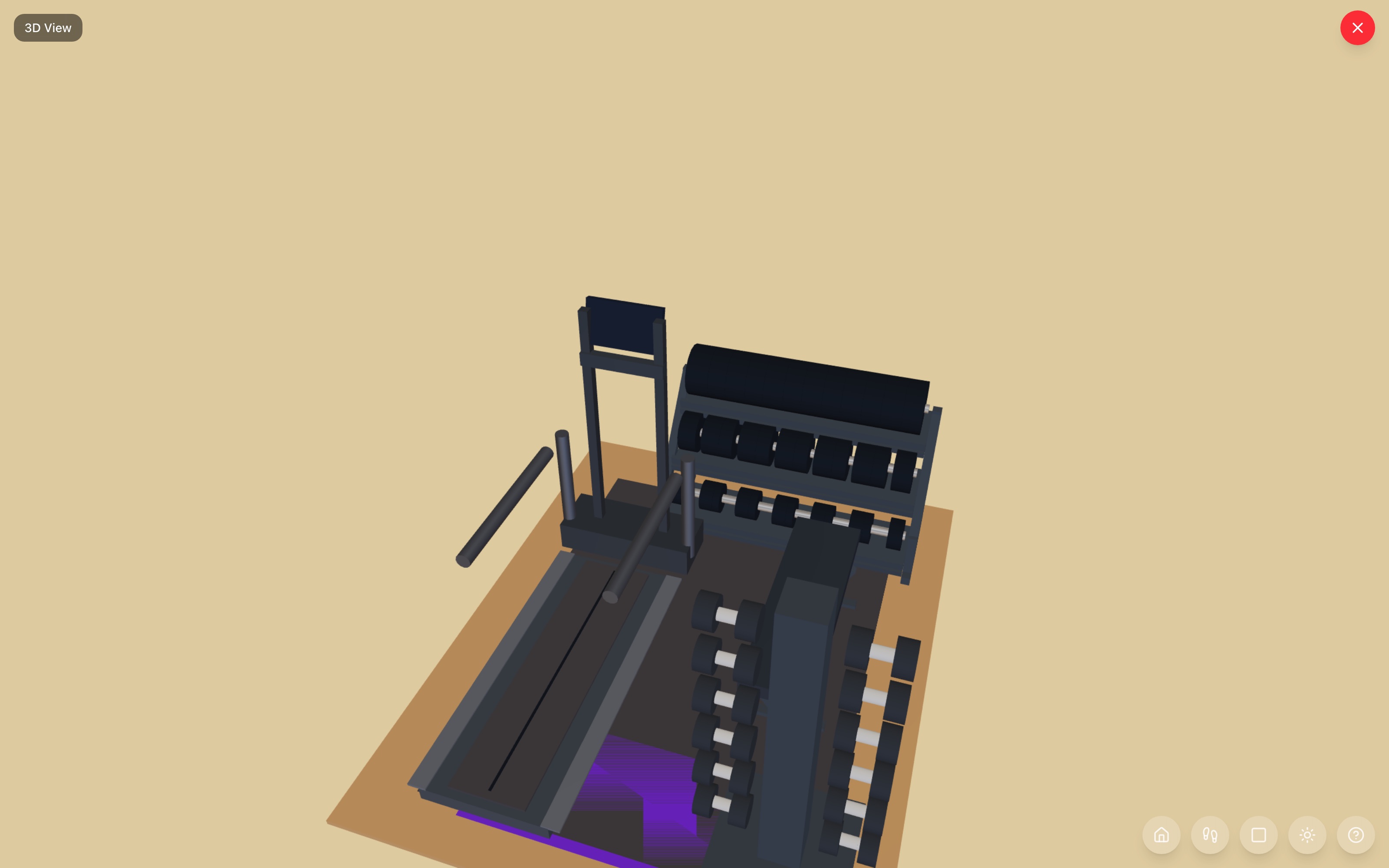

The finished corner in 3D — cardio, iron, and a stretch zone that stays clear.
Tips
The stall mat is the most important piece
It protects the floor from the iron, kills the treadmill's hum, and draws the gym's border so equipment doesn't sprawl. If you upgrade only one thing, upgrade what's under everything else.
Swap the cardio piece to fit the space
When the corner is shared space, the Folding Treadmill tips up against the wall between runs. A Spin Bike takes about half the treadmill's footprint and gives the bench more lifting room.
The bench needs air, not just floor
A flat bench is 14 inches wide because your elbows, not the pad, define its real footprint — leave clear space on both sides and above. Check it in 3D from a low angle before you commit the layout.
Common mistakes
Iron on a bare floor
One dropped dumbbell on tile or hardwood is a repair bill bigger than the mat. Lay the stall mat first and keep every weight on it — that's why it's step one.
No dismount zone behind the treadmill
The belt keeps moving; you sometimes don't. Keep 24 inches clear behind the deck, and let Flow Check flag anything that drifts into it.
Machines eating the stretch zone
The yoga mat's strip of floor is the easiest space to sacrifice and the one you'll miss every session. If a swap or a bigger machine lands on it, the corner needs to grow — not the stretch zone shrink.
Frequently asked questions
How much space does a home gym corner need?
About 8 × 10 feet for this full six-piece version, with the 6×8 stall mat as its core. Swap the treadmill for the Spin Bike and the same kit fits closer to 7 × 9.
What equipment makes up a home gym corner?
Six catalog pieces: Rubber Stall Mat (6×8), Treadmill, Dumbbell Rack (3-Tier), Flat Bench, Yoga Mat, and a Vertical Dumbbell Stand. Search each name in the Furnish panel.
Can I swap pieces?
Yes — that's the point of planning it. Try the Folding Treadmill when the corner doubles as living space, or the Spin Bike at half the footprint. The layout logic stays the same: cardio down one side, weights racked facing you, lifting air around the bench, stretch zone kept clear.
