Edit your walls right on the plan
Press any wall on the plan and drag it to move it (on a phone, tap it first), or tap it to type its length, split it, delete it or make it a railing. Moving an outside wall keeps its length and stretches the walls beside it, so the outline stays closed; an angled wall beside it swings to follow instead of getting a notch (turn the link off to move a wall alone); a deleted outside wall leaves a dashed gap with a + to put it back. Draw new outside walls with Build → Exterior Wall, and keep the Outline Editor for the rare corner fix.
Your walls are edited where you see them: on the plan. Tap a wall and everything you can do to it appears in a small bar beside it and in its settings panel. You can drag it, type its exact length, split it in two, delete it, turn it into a railing or an open side, or bow it into a curve (curved walls). The rest of the plan updates as you go, so you can watch the rooms change size. Nothing opens in a separate screen and there's no Update button to remember.
Looking for Edit Floor Plan Shape (or the Edit Floor pill on a phone)? It's gone. Everything it did for walls now happens on the plan, as this page shows. New exterior walls are drawn on the plan too, with Build → Exterior Wall (see Add exterior walls right on your plan). The one-off outline fixes, like dragging a single corner, squaring every corner or re-scaling, live in the Outline Editor under Plan Settings → Layout: see The Outline Editor.
What you'll need
- •A design open in the editor, on a computer, tablet or phone
Step by step
- 1
Tap a wall to select it (outer or interior)
Tap the wall. An outer wall turns blue and gets a small bar beside it: its length (tap to type), a padlock, a link button, a curve button, scissors and a red trash can. The link starts blue (on). The curve button bows the wall into an arc; see Curve a wall. A crosshair sits at each end of the wall and a + just beyond each end. Its settings panel, titled Exterior wall, opens at the bottom (along the bottom of the screen on a phone) with Type: Wall | Railing | Open, Length, Height, Thickness, the Is Load-bearing? switch and Remove. An interior wall gets a bar with its length, a padlock, a link, a magnet, a curve button and a ⋯ button, and opens the Interior Wall panel (Length, Thickness, Style, Height). Tap an empty spot, or press Esc, to deselect.
Tap an outer wall: length, padlock, link (blue: on), curve, scissors and trash beside it; a + at each end. - 2

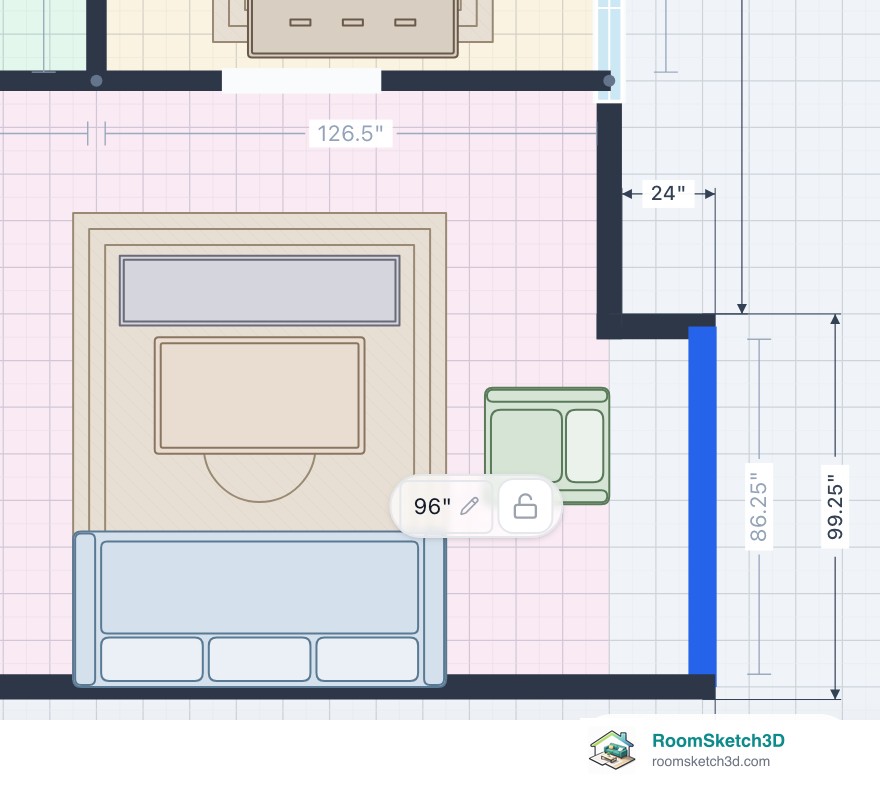

Press and drag a wall to move it (with its neighbours, or on its own)
On a computer, press on any outside wall and drag: there's no need to click it first. The wall is selected the moment you press, and it only starts to move once the pointer has travelled a few pixels, so an ordinary click to select a wall never nudges it. On a phone or tablet, tap the wall first, then drag it; a swipe that starts on a wall you haven't selected moves the plan around instead, so you can't shift a wall by accident while scrolling. Drag it in or out, or drag the crosshair at either end to make it longer or shorter along its line. While you drag, the angle at each of its corners and the dimension lines move with it, so you can stop at the number you want instead of guessing and checking after you let go. Doors and windows ride along, and the room areas update when you let go. By default the link button on its bar is solid blue, Joined walls move too: the walls beside it stretch to stay joined and the interior walls attached to it come along, so no gap opens in the outline. Tap the link so it turns grey and broken, Wall moves on its own, when you want only that wall to change: the walls at its two ends then stay where they are and any space that opens between them stays as a dashed gap in the outline (tap a gap's + to fill it with a wall). On a computer, hold Alt (Option on a Mac) while you drag to do the opposite for that one drag. Outer walls follow the toolbar's snapping button: on, the wall lines up with parallel walls as it comes close; off, it goes exactly where you drag it. More on gaps and the link: Gaps in an outside wall.
Link on (the start): the walls beside it stretch, no gap opens. - 3
Watch the angles and lengths while you drag
Mid-drag, the plan already shows the result: the dragged wall is drawn where it will land, the walls beside it stretch or swing to meet it, and the corner-angle labels at both of its ends and the dimension lines around it follow the pointer. In the picture the top wall of the Cozy Living Room template (with its top-right corner cut at 45°) is being pulled up by 2 ft: the angle next to the cut already reads 121.8°, the cut wall 6′ 5.17″, the side wall 18′ 6.5″. The wall's own bar (its length, padlock, link, curve button, scissors and trash) fades while you drag and comes back when you let go. Let go when the numbers are right, or keep dragging; nothing is final until you release, and Undo takes back the whole move.
Mid-drag: the corner angles and dimension lines follow the wall as it moves. - 4
Next to an angled wall: the moved wall keeps its length, the angled wall swings
A wall you move keeps its length. When the wall beside it runs straight along the move (the usual square corner), that wall simply gets longer or shorter, as above. When the wall beside it is angled, for example the 45° wall across a cut-off corner (135° corners) or a bay side, it now keeps its far end where it is and swings to meet the moved wall: its angle changes, and its length with it. Earlier versions added a short extra wall (a small notch) beside the angled wall instead, which left a step in the outline every time you moved a wall next to an angled one.
In the pictures the top wall of the Cozy Living Room template was dragged 2 ft further out with the link on:
Before After Top wall (outside) 11′ 1.35″ 11′ 1.81″ Corner between top wall and angled wall 135° 121.8° Angled wall 4′ 10.2″ 6′ 5.17″ Left wall 16′ 6.5″ 18′ 6.5″ Gross area 235 sq ft 260 sq ft The top wall's own length didn't change; the outside measurement moves by a fraction of an inch only because the plan measures the outer face, and that face's mitre at the angled corner changed with the new angle. The square corner at the other end stays 90° and the far end of the angled wall, on the right-hand wall, doesn't move. If you'd rather the angle stayed and the length changed, type the angle back afterwards (tap the wall, tap the corner's angle; see Type the angle between two walls).
Before: the top wall meets the 4′ 10.2″ angled wall at 135°. - 5
After the move: the angled wall has swung, no notch
After the drag, the outline is still five clean walls: the top wall kept its length, the angled wall swung from its fixed bottom end up to the top wall's new corner, and the corner between them opened from 135° to 121.8°. Drag the top wall back in and the angled wall swings the other way (its angle grows past 135° and it gets shorter). The same happens when you move the angled wall itself: it keeps its length and the walls at both its ends stretch or swing to stay joined. Interior walls attached to the moved wall come along when the link is on, as before. With the link off, the move works as described in the step above: where the moved wall pulls away from a wall beside it, that wall stays put and a dashed gap opens.
After: the angled wall swings to meet the moved wall; its angle changes instead of a notch appearing. - 6
Where a notch (or a stop) still happens
The angled wall only swings when that's the safe thing to do. A short extra wall, a notch, is still added beside the moved wall when the wall next to it: - continues the moved wall's line (within about 20° of straight): it's the same side drawn in two pieces, or a slight kink, so the notch keeps that side straight instead of bending it; - is curved; - has a door or window on it and would get shorter (getting longer is fine: its doors and windows keep their distance from its fixed end); - would end up crossing another wall or shrinking to nothing if it swung. In that case the move works exactly as it did before. A locked length (the padlock) also stops an angled wall from swinging. Dragging the top wall with the angled wall's length locked is stopped altogether, with the note That would change a locked wall length. To change it, select the wall and tap the padlock next to Length., and nothing moved. Unlock the angled wall and drag again.
A locked angled wall can't swing: the move is stopped and the locked wall is highlighted. - 7
Type an exact length
Got a tape-measure number? Tap the length on the bar beside the selected wall (or the Length field in its settings panel) and type it. Feet and inches, inches, or metres and centimetres all work. While you type, a pin marks the end that stays put and an arrow marks the end that moves; tap the arrow to keep the other end instead. With the link on (the start), the wall at the moving end comes with it; turn the link off and a shorter length leaves a dashed gap between the moved end and the corner it used to reach instead. Full details: Set an exact wall length.
- 8

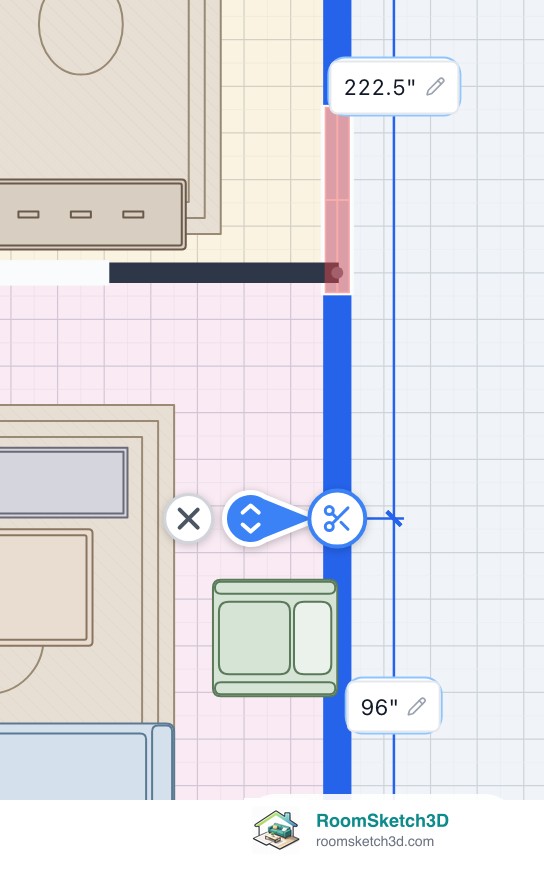

Split a wall in two
Select the wall and tap the scissors on its bar (for an interior wall, tap ⋯ first). A blue note at the top of the screen says Drag the pin along the wall, then tap the scissors to split. A pin appears on the wall: drag its round head along the wall. The tip marks the exact spot, so your finger never covers it. Dots mark where other walls meet this one; tap a dot to jump there. On an outside wall you can split right through a door or window: it then spans both halves, and the plan, exports and 3D cut it out of both pieces. Only a stretch under a balcony or bay window can't be split; it shows in red. A curved wall can't be split at all: straighten it first, split it, then curve the piece you want (see Curve a wall). Away from a dot you see the distance from each end of the wall; tap a distance to type it. When the pin is where you want it, tap the scissors on the wall to split, or tap the small × beside the pin to cancel. Both halves keep the wall's height, thickness, paint and name, and doors and windows stay exactly where they were. Each half is now its own wall: give it its own height or thickness, drag one out to make a bump-out, or delete it to open that stretch. A door, window or opening can sit across the joint between two pieces of a straight run, so you can still tap, drag or widen one over the split; each piece keeps its own height and thickness above and beside it.
Drag the pin, even onto a window, tap a distance to type it, then tap the scissors. - 9

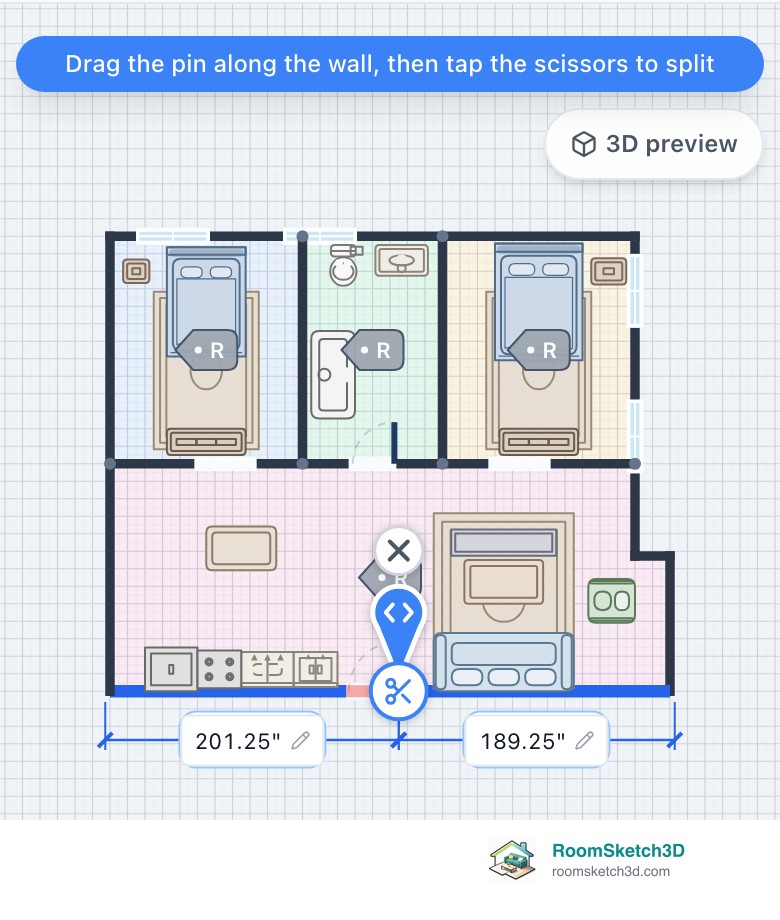

On a phone, it works the same way
On a phone, tap the wall and its bar appears beside it, with its settings along the bottom of the screen. Tap the scissors and the blue note runs across the top: Drag the pin or tap a dot, then tap the scissors to split. The pin's round head sits off to the side of the wall, so your finger never covers the spot you're splitting at. Pinch to zoom in when you want a finer position, or tap a distance and type it.
Phone: the pin's head stays clear of your finger. - 10

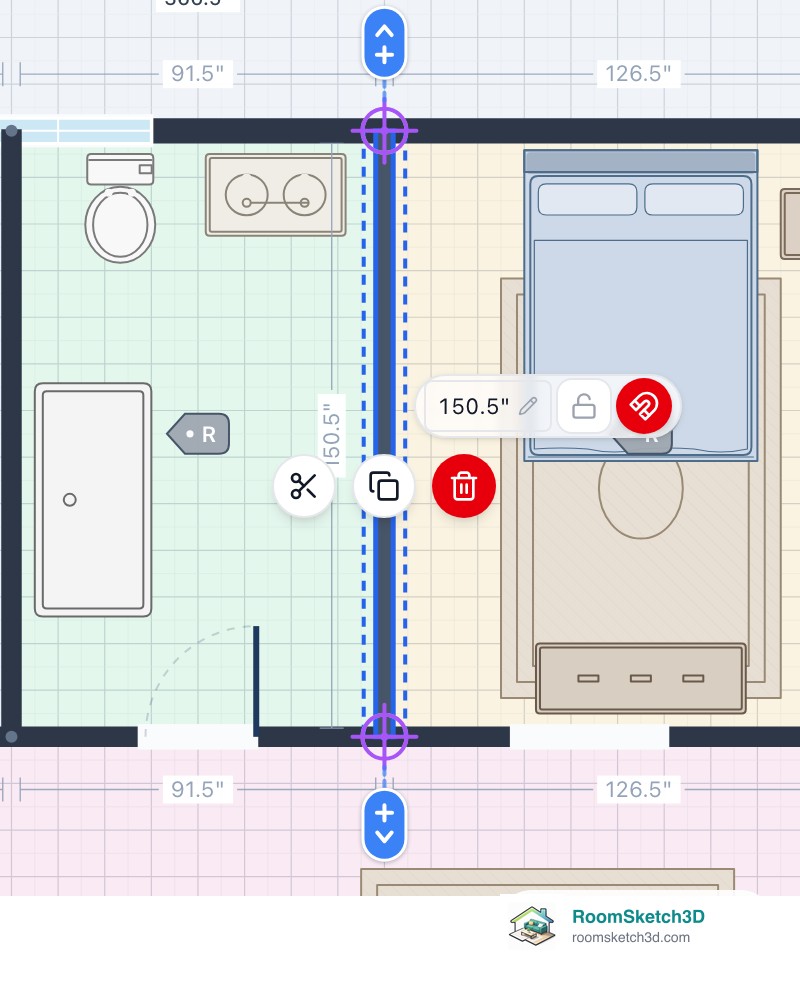

Interior walls: the ⋯ button hides split, copy and delete
Tap an interior wall and its bar shows its length (tap to type), a padlock, a link, a red magnet that switches snapping on or off for that wall, a curve button (see Curve a wall) and ⋯ (More: split, copy or delete this wall). Tap ⋯ and three round buttons appear beside the wall: scissors (split, exactly as above), copy and delete. They tuck away again when you select another wall. Drag the crosshair at either end to change its length, or pull the blue + to add a wall connected to it. More in Interior walls and partitions.
Interior wall: tap ⋯ for scissors, copy and delete. - 11

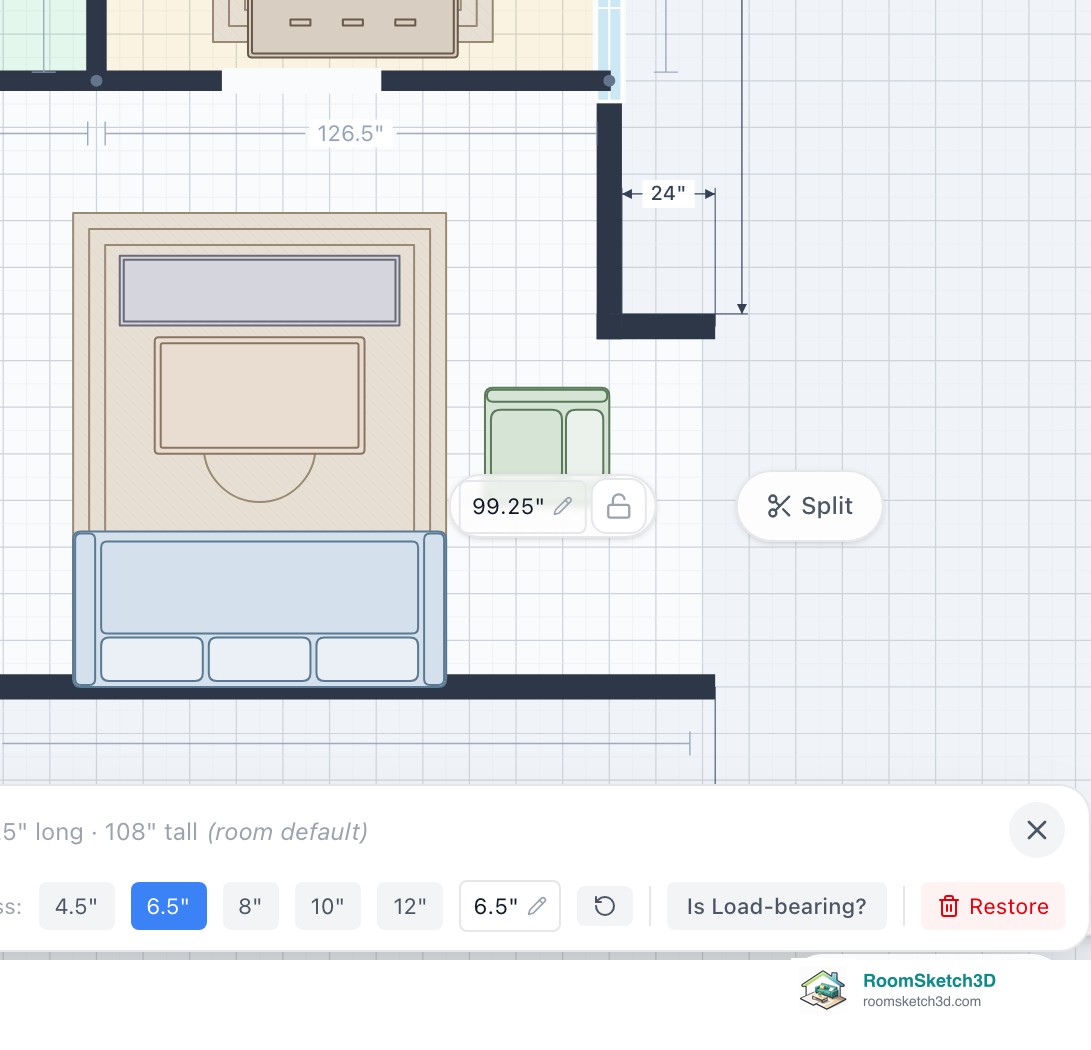

Delete a wall: it leaves a gap you can fill again
Tap the trash can on an outer wall's bar (or Remove at the bottom of its panel). The wall is taken out and that side is left open, for an open-plan side, a porch edge or a carport. Its place stays in the outline as a dashed gap, still selected, with a + in its middle: tap the + (Fill this gap with a wall) to put the wall back. The room's outline, floor and furniture stay where they are, and at least one solid outer wall always remains. An interior wall is deleted from its ⋯ menu instead. Undo brings back either kind. Walls you removed before October 25, 2026 still show a Restore button in their panel. Deleting is also the first step to replace a wall with a different shape: pull the + at the gap's corner and draw the walls the house really has, even inside the old outline (a square corner instead of a slanted wall, say). The floor left outside the new walls comes off the plan, and an interior wall you land on becomes part of the new outside wall. See Add exterior walls right on your plan for the worked example, and Gaps in an outside wall for taking the floor behind a gap off the plan (the gap's own trash can, Remove area).
A deleted wall leaves a dashed gap; tap its + to put the wall back. - 12

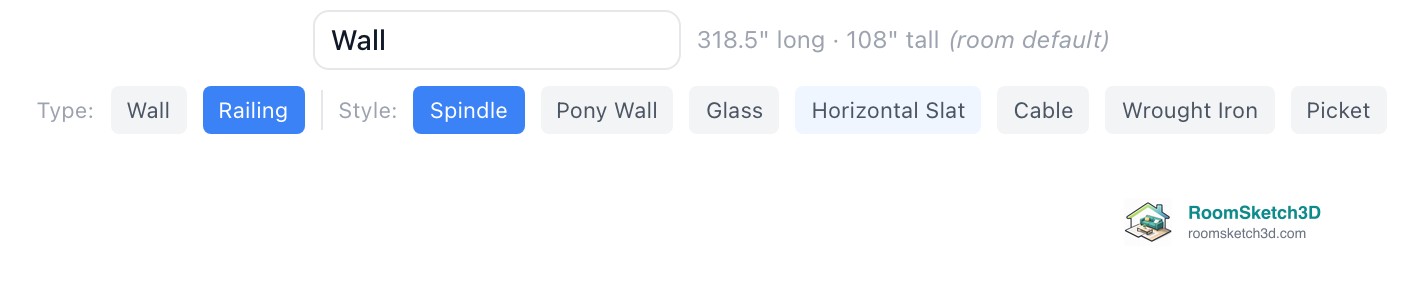

Make a wall a railing, or an open side (Wall | Railing | Open)
In an outer wall's panel, set Type to Railing and pick a Style: Spindle, Pony Wall, Glass, Horizontal Slat, Cable, Wrought Iron or Picket. Use it for a loft edge, a landing over a living room or a half wall by the stairs. Open leaves a gap with no wall at all, like deleting it; tap Wall (or the gap's +) to make it a solid wall again. Interior walls have their own Style choices in their panel: Full, Pony, Glass, Railing or Partition. On a yard floor the outline is a fence, so you get fence styles instead. See Railing styles.
Type: Wall | Railing | Open, then pick a railing style. - 13
Grow the plan: Add Room, or draw new exterior walls
For a rectangular addition, open Build (on a phone, Structural & Interior) and tap Add Room, the first tile under Structural: tap the outside wall the new room sits against, drag its corners to size it, then tap Done (see Add a room). For an extension of any shape, tap Exterior Wall, the tile next to it, or pull the + at the end of a selected outside wall: tap where the new walls leave the plan, pull the + for each wall or type its length, and end back on an outside wall. The plan grows and the stretch of old wall now inside becomes an interior wall. See Add exterior walls right on your plan. Doors, windows and fixtures you've already placed never move.
- 14
Lock a length so nothing changes it
Tap the padlock on the wall's bar (or next to Length in its panel) to lock that wall's length. Edits that would change it, like resizing a neighbouring wall with the link on, are stopped with a message: That would change a locked wall length. To change it, select the wall and tap the padlock next to Length. Each piece of a split-up measurement has its own padlock too: tap the number, then the padlock (on a computer, hover over the number and click it). A locked wall can't be split until you unlock it.
- 15
Check corners and work on a rotated plan
Turn on Layers → Show corner angles to see the angle at every corner, with square corners in green. It's the quickest way to spot a corner that's slightly off. To change one, tap either wall at that corner: its angle shows in a pill with a pencil; tap it, type the angle you measured (or 90 to square it), pick Which wall turns (Joined wall, the one on the other side of that corner, is picked to start with; This wall turns the one you tapped; the wall that will turn is marked on the plan) and tap ✓. The turning wall pivots on that corner and the wall at its far end gets longer or shorter (see Type the angle between two walls). Everything on this page also works with the plan rotated (Plan Settings → Rotation): the split pin, distances, crosshairs and + handles follow the wall, and their text stays upright. See the Layers menu and Rotate or flip the plan.
Tips
Type when you have a number, drag when you don't
Dragging is for sizing by eye. If you measured the wall, type the length, and lock it if it must not change.
Split where a real wall meets it
The dots on a wall you're splitting mark where interior walls meet it. Splitting there gives you the outer wall pieces that match your rooms, ready to move or delete one by one.
Turn the link off to reshape just one wall
The link starts on, so the walls at both ends come along when you move an outside wall. To move only that wall, tap the link so it reads Wall moves on its own (grey, broken), or hold Alt (Option on a Mac) while you drag. Dashed gaps then open at its ends. The setting holds for every outside wall until you change it back or reopen the design.
Next to an angled wall, drag first and type the angle after
Moving a wall beside an angled wall changes that angle. If the angle matters (a 45° bay, a 135° entrance), drag the wall to roughly where it goes, then tap it and type the angle back at that corner, with This wall or Joined wall picked so the right wall turns.
Undo is always there
Every move, split, deletion and railing change can be undone with Undo (Ctrl+Z on a computer).
Common mistakes
Looking for Edit Floor Plan Shape
That button and the phone's Edit Floor pill were removed. Tap the wall on the plan instead. For a one-off corner fix, use Plan Settings → Layout → Outline Editor.
Deleting a wall to make the room smaller
Deleting leaves a gap; it doesn't shrink the floor. To make a room smaller, drag the wall in or type a shorter length; with the link on (how it starts) the walls beside it follow. To change the outline's shape there, delete the wall and draw new walls in its place from the gap's corner; the floor outside them comes off the plan.
Dragging a wall and finding dashed lines
Those are gaps: the link was off (or you held Alt / Option), so the wall moved on its own and the walls beside it stayed. Undo, tap the link so it's blue again, and drag; or keep the move and tap each gap's + if you want walls there.
Expecting an angled wall to keep its angle
A moved wall keeps its length, so the angled wall beside it has to swing to stay joined. That's on purpose (it used to add a small notch instead). If you need the old angle, type it at the corner afterwards, or lock the angled wall's length first if it must not change (the move is then stopped).
Swiping a wall on a phone and seeing the plan move
On a touch screen a swipe that starts on a wall you haven't selected pans the plan, so scrolling never moves a wall by accident. Tap the wall first, then drag it. With a mouse you can press and drag any wall straight away.
Splitting under a bay or right at a corner
The note at the top says why a spot can't be split: Not under a balcony or bay, Too close to the corner, Unlock this wall's measurements first or A curved wall can't be split. Slide the pin a little, or unlock the length. A door or window no longer stops a split.
Frequently asked questions
Where did Edit Floor Plan Shape go?
It was retired in October 2026, on the web, iPhone, iPad and Android. Everything it did for walls is now done by tapping the wall on the plan: move, type a length, split (the scissors), delete (the trash can; it leaves a gap with a + to put the wall back), and Wall | Railing | Open. Use Add Room or Exterior Wall in the Build panel to grow the plan. The editor itself, now called the Outline Editor, still opens from Plan Settings → Layout → Outline Editor for one-off fixes: dragging or deleting a corner, All 90°, Re-scale, and Reposition this floor on an upper floor.
Do I have to click a wall before I can drag it?
Not with a mouse: press on the wall and drag, and it's selected and moved in one go. A plain click still just selects it, because the wall only starts moving after the pointer has travelled a few pixels. On a phone or tablet, tap the wall first and then drag it; a swipe on a wall you haven't selected pans the plan.
I moved a wall and the angled wall next to it changed its angle. Why?
A wall you move keeps its length, and an angled wall beside it (a 45° corner cut, a bay side) keeps its far end and swings to meet it, so its angle and length change. Before November 2026 a small notch was added beside the angled wall instead. To set the angle back, tap either wall, tap the angle at their corner and type it. Undo takes the move back in one step.
Why did a small notch appear when I moved a wall?
A notch (a short extra wall) is still added when the wall beside the moved one carries on in nearly the same direction (the same side drawn in two pieces), is curved, has a door or window and would get shorter, or couldn't swing without crossing another wall. Undo, then move the neighbouring piece instead, or type the length or angle you want. A locked angled wall stops the move instead: unlock it first.
How do I drag a corner?
Select an outside wall and drag the crosshair at its end: the wall gets longer or shorter along its own line, and the wall at that corner comes along (turn the link off to leave it where it is). To make a wall meet its neighbour at an exact angle, tap it and type the angle at that corner instead (see Type the angle between two walls). For a free corner drag, open Plan Settings → Layout → Outline Editor, drag the corner, and tap Update Floor Plan.
Why does only one wall move when I drag it?
Because its link button is off (grey, Wall moves on its own), or you held Alt / Option during the drag. The link starts on each time you open a design, but once you turn it off it stays off for every outside wall. Tap it so it turns solid blue (Joined walls move too) and the walls beside it stretch with it. Any dashed gaps the first drag left can be filled with their +.
How do I add a wall to the outline, like a bump-out or an extension?
For a rectangular addition, use Build → Add Room and tap the outside wall it sits against. For a small bump-out, split the wall twice and drag the middle piece out. For an extension of any other shape, use Build → Exterior Wall (or pull the + at the end of a selected outside wall): tap where it starts on an outside wall, pull the + for each new wall or type its length, and end back on the plan. The stretch of old outside wall that ends up inside becomes an interior wall. See Add exterior walls right on your plan.
I deleted a wall. How do I get it back?
Undo, or select the dashed gap where the wall was and tap its + (Fill this gap with a wall). Walls removed before October 25, 2026 keep a Restore button in their panel instead.
How do I remove a whole room I added by mistake?
Right after adding it, Undo. Later, select each of the room's outside walls and tap its trash can (each becomes a dashed gap), then select one of the gaps and tap the trash can on the gap's bar (this is Remove area; it used to be a button with those words), check the red preview and tap Delete (or Delete all if furniture stands in it). The room's floor comes off, the wall it shared with the house becomes an outside wall again at the outline's thickness, and the windows and doors on the rest of that house wall stay. See Gaps in an outside wall.
Does editing walls move my furniture?
No. Furniture stays where it is. If a piece ends up in a wall or outside the room, Smart Flow Check points it out so you can move it.
Can I still edit the yard boundary this way?
The yard is edited in its own editor, which keeps its full toolset: Split Boundary, Add Boundary, Remove Boundary, Boundary Style and Edit Boundary Length/Height (each fence's length and height). Open it with Edit Yard in the Floors menu, from any floor.
Does this work on a phone?
Yes. Everything on this page works the same on a phone. The wall's bar sits beside it, its settings open as a panel at the bottom of the screen, and the split pin is sized for a finger, with its tip off to the side so you can see the exact spot.
